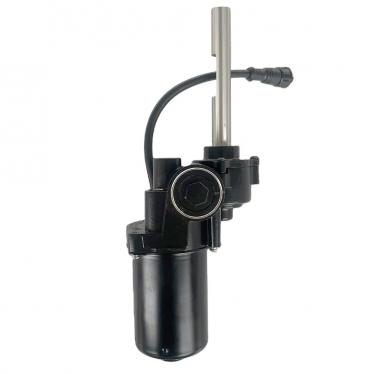

Restore smooth, automated utility and convenience to your electric side steps with this premium factory-direct replacement Power Running Board Motor. Specifically engineered with a standard 5-wire round plug terminal connector layout with smart position feedback support, this heavy-duty electric actuator serves as a direct plug-and-play fix for power steps that are jammed, locked in position, or making loud gear-grinding noises.
This standalone motor unit features a high-torque internal armature built to deliver consistent extension and retraction performance under high mechanical loads and harsh environmental exposure.
Product Specifications & Placement:
- Factory Identification Reference: TB1662-056R

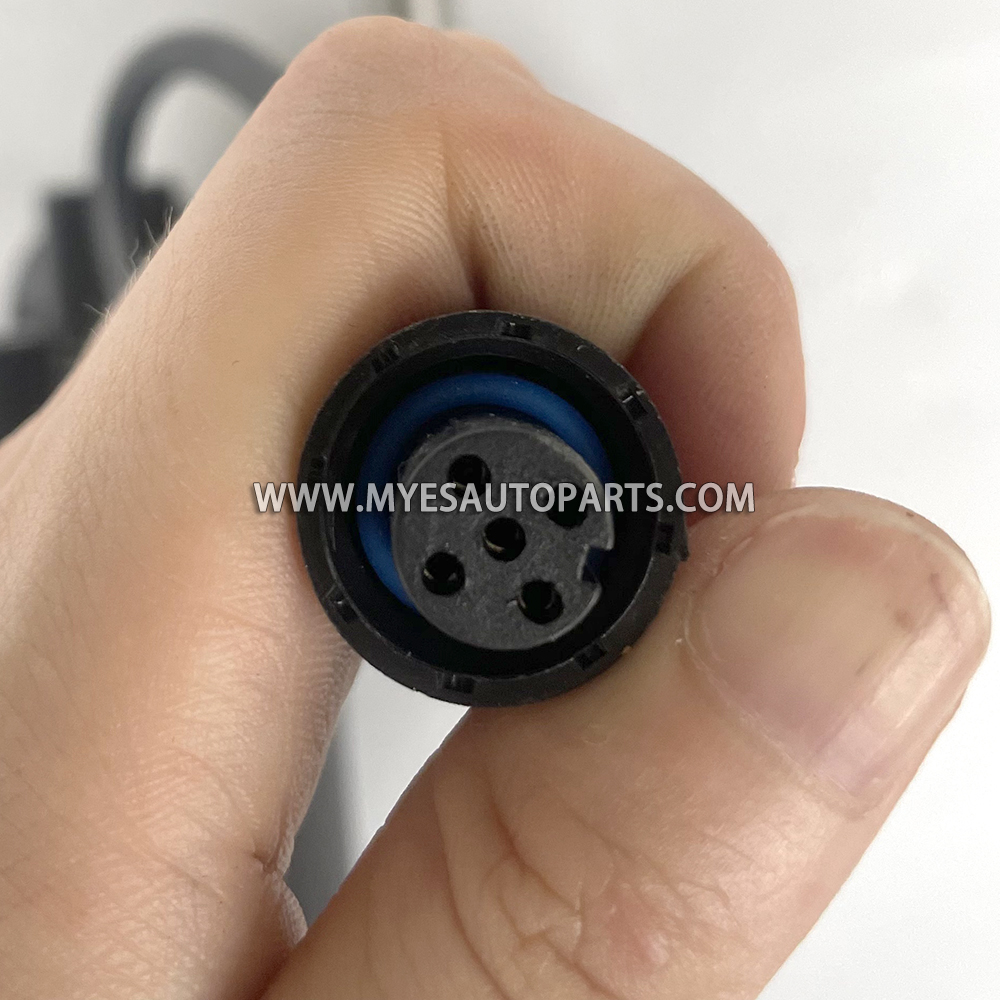

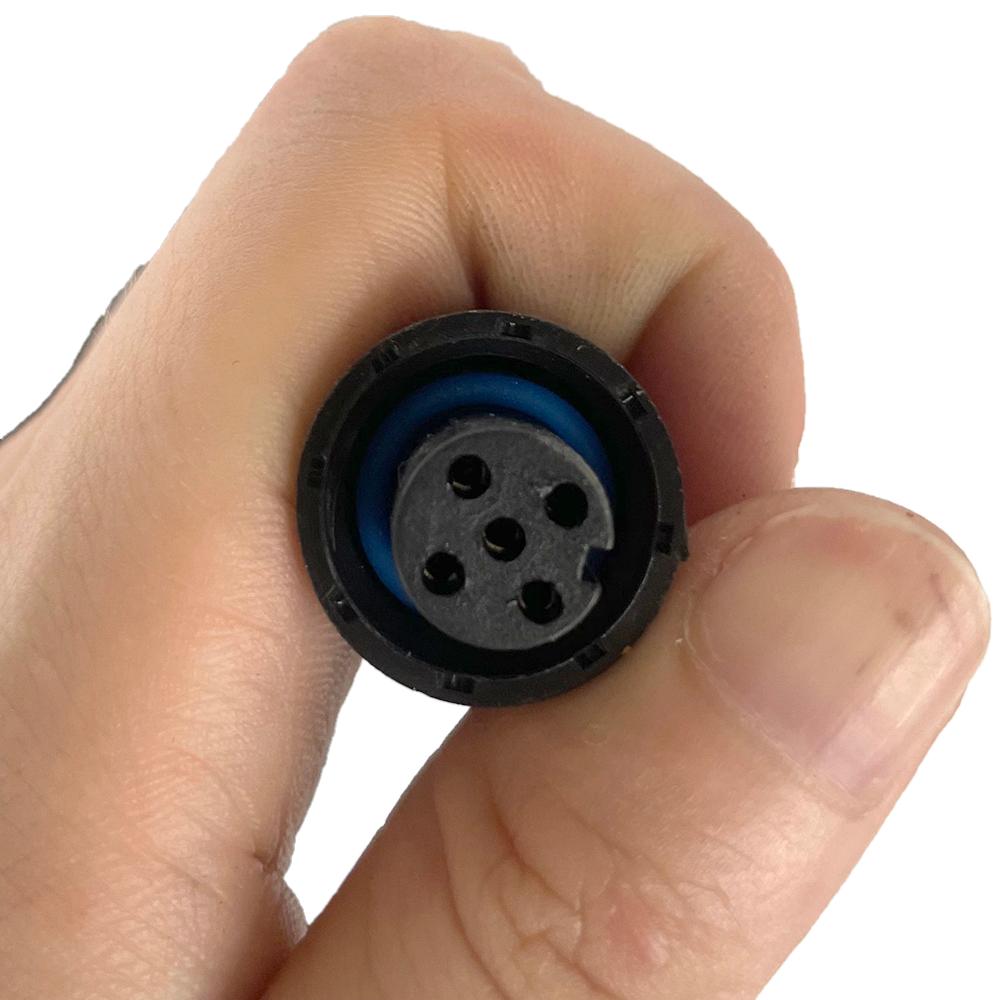

- Plug Layout: 5-Wire / 5-Pin Round Female Terminal Configuration
- Position: Front Right Side / Passenger Side (RH) Only
Key Product Features:
- Exact-Fit Harness: Precision-molded 5-wire round plug extension clips straight into matching smart position module undercarriage wiring harnesses without needing cutting or wire splicing.
- Upgraded Internal Gears: Constructed with hardened metal internal components to permanently eliminate the stripping issues common in standard plastic alternatives.
- Weather-Sealed Security: Finished with a solid anti-corrosive housing and IP67 weather seals to shield internal electronic traces from heavy road mud, winter salt, and high-pressure undercarriage washes.
- Notice: This package contains the standalone electric motor unit only. Mounting brackets, electrical wiring looms, and linkage assemblies are not included.
[Click here for the Power Running Board Motor]
| No. | Project | Standards | Remarks |
| 1 | Rated voltage | DC 12V |
|
| 2 | No-load current | ≤ 2.5A |
|
| 3 | Rated power | 80W |
|
| 4 | Frequency | 50/60Hz |
|
| 5 | Load 5Nm | Rotation speed14± 1 RPM;current≤5A |
|
| 6 | Load 20Nm | Rotation speed 8± 1 RPM;current≤12A |
|
| 7 | Brake torque | Torque ≥50N.m;current≤28A |
|
| 8 | Output shaft rotation speed | 15 RPM ± 1 RPM |
|
| 9 | Output shaft steering | Refer to the appearance drawing | L (Left) Motor: Counterclockwise |
| R(Right) Motor: Clockwise |
| 10 | Noise | ≤ 60dB | 300mm from the center of the motor Horizontal position |
| 11 | Number of poles | 2-pole |
|
| 12 | Insulation level | F grade |
|
| 13 | Protection level | IPX7 |
|
FAQs
Q: What models does this electric step motor fit for?
A: It fits most SUV and pickup electric running boards, compatible with mainstream car brands and various year models.
Q: Is this motor original OEM quality?
A: Yes, it adopts OEM standard production, same performance as original factory parts.
Q: What is the waterproof grade of the motor?
A: IPX7 waterproof and dustproof, suitable for all weather and complex road conditions.
Q: What materials is the motor made of?

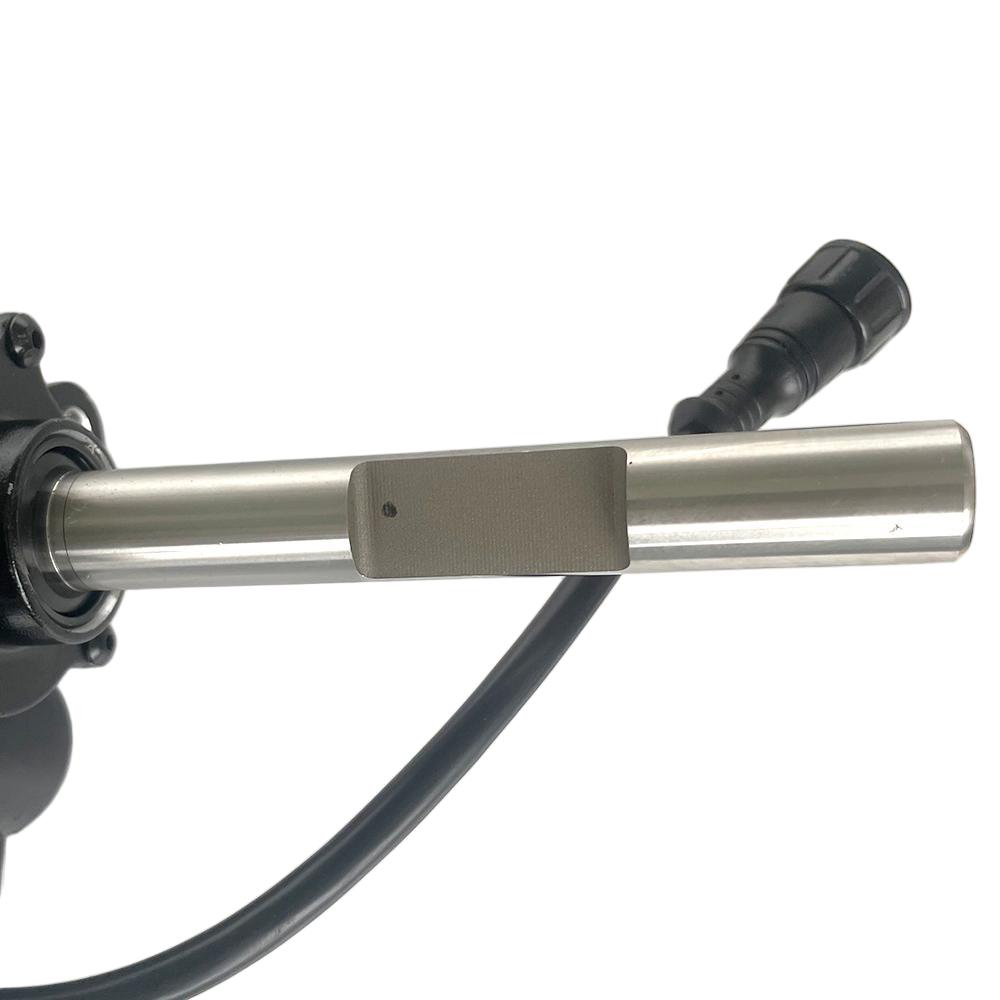

A: The motor uses stainless steel output shaft, die-cast aluminum housing with anti-corrosion coating, pure copper coil, and high-strength metal gears. The cable is TPU-insulated with a nylon waterproof connector, ensuring durability and long service life.
Q: Does the motor support easy replacement?
A: Plug and play design, direct replacement, no wire cutting or programming needed.
Q: Will the motor make loud noise when working?
A: Low noise stable operation, smooth telescoping without abnormal sound.
Q: Can you customize or develop new motor models?
A: We support OEM & ODM, can customize motors according to customers samples or drawings.
