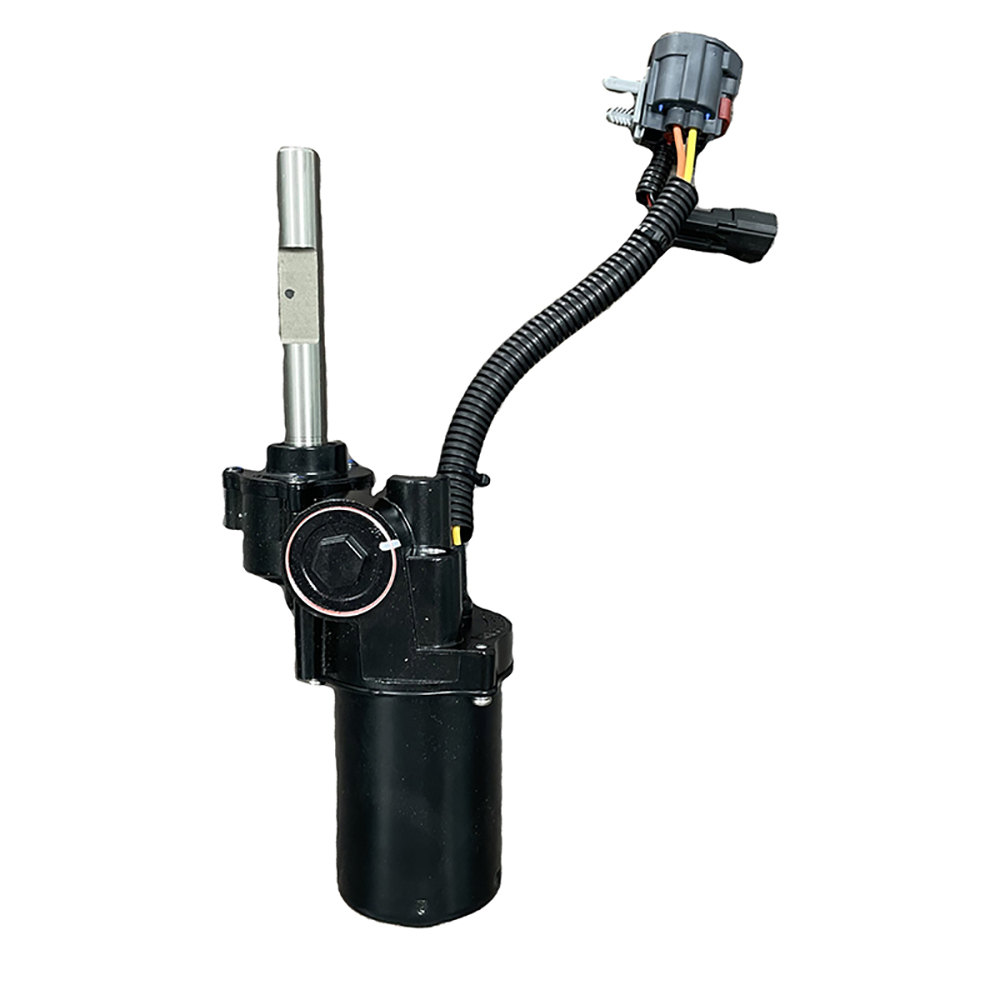

Interchange & Cross-Reference OE Numbers

• Factory Motor OE Number: 84751106

• Hinge Bracket & Full Step Assemblies (Right Side): 87830483, 84824212, 87830702

Operating temperature and humidity range: Temperature: -20℃ to +65℃; Humidity: 45% to 75%.

Storage temperature and humidity range: Temperature: -10 to 40℃, Humidity: 75% (maximum).

Protection level IPX7

Load: 5Nm, Speed: 14 ± 1 RPM; Current ≤ 5.0A

Load: 20Nm, Speed: 8 ± 1 RPM; Current ≤ 12A

Brake torque: Torque ≥ 50 N.m; Current ≤ 28A

Output (Output) shaft speed: 15 RPM ± 1 RPM

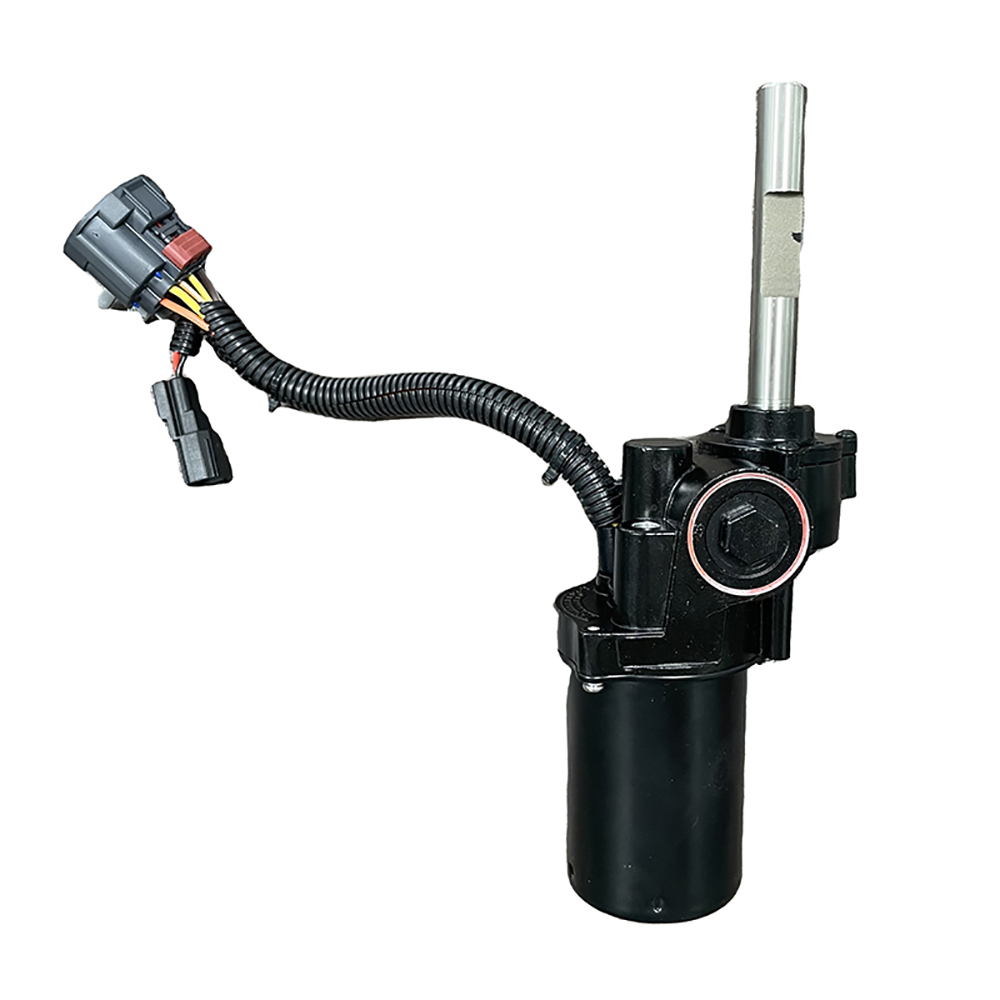

Interchange & Cross-Reference OE Numbers

• Factory Motor OE Number: 84751105

• Hinge Bracket & Full Step Assemblies (Left Side): 87830482, 84824211, 87830701

Operating temperature and humidity range: Temperature: -20℃ to +65℃; Humidity: 45% to 75%.

Storage temperature and humidity range: Temperature: -10 to 40℃, Humidity: 75% (maximum).

Protection level IPX7

Load: 5Nm, Speed: 14 ± 1 RPM; Current ≤ 5.0A

Load: 20Nm, Speed: 8 ± 1 RPM; Current ≤ 12A

Brake torque: Torque ≥ 50 N.m; Current ≤ 28A

Output (Output) shaft speed: 15 RPM ± 1 RPM

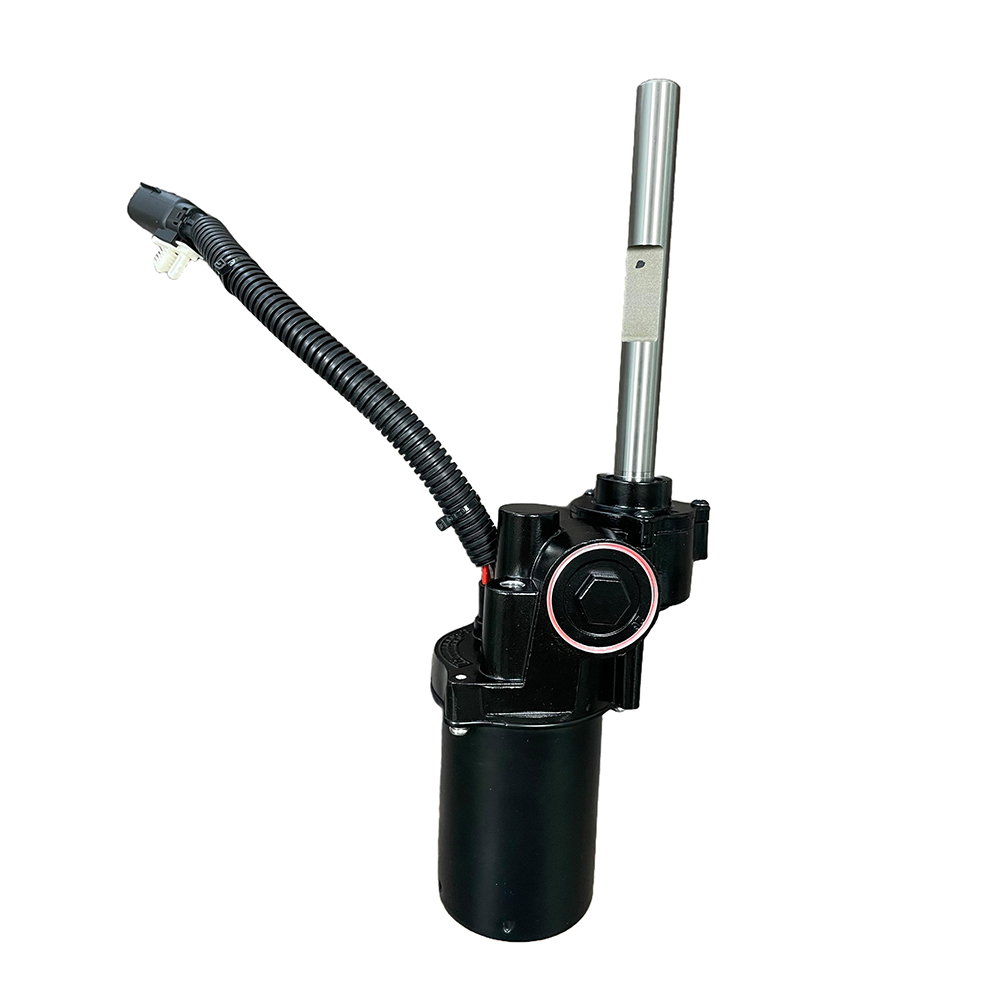

Interchange & Cross-Reference OE Numbers

This motor serves as the internal replacement unit for the following factory numbers:

• Hinge Bracket & Motor Assemblies (Left Side): 2048262, BK3116470AD, BK31-16470-AD, BK3116470AC

Operating temperature and humidity range: Temperature: -20℃ to +65℃; Humidity: 45% to 75%.

Storage temperature and humidity range: Temperature: -10 to 40℃, Humidity: 75% (maximum).

Protection level IPX7

Load: 5Nm, Speed: 14 ± 1 RPM; Current ≤ 5.0A

Load: 20Nm, Speed: 8 ± 1 RPM; Current ≤ 12A

Brake torque: Torque ≥ 50 N.m; Current ≤ 28A

Output (Output) shaft speed: 15 RPM ± 1 RPM

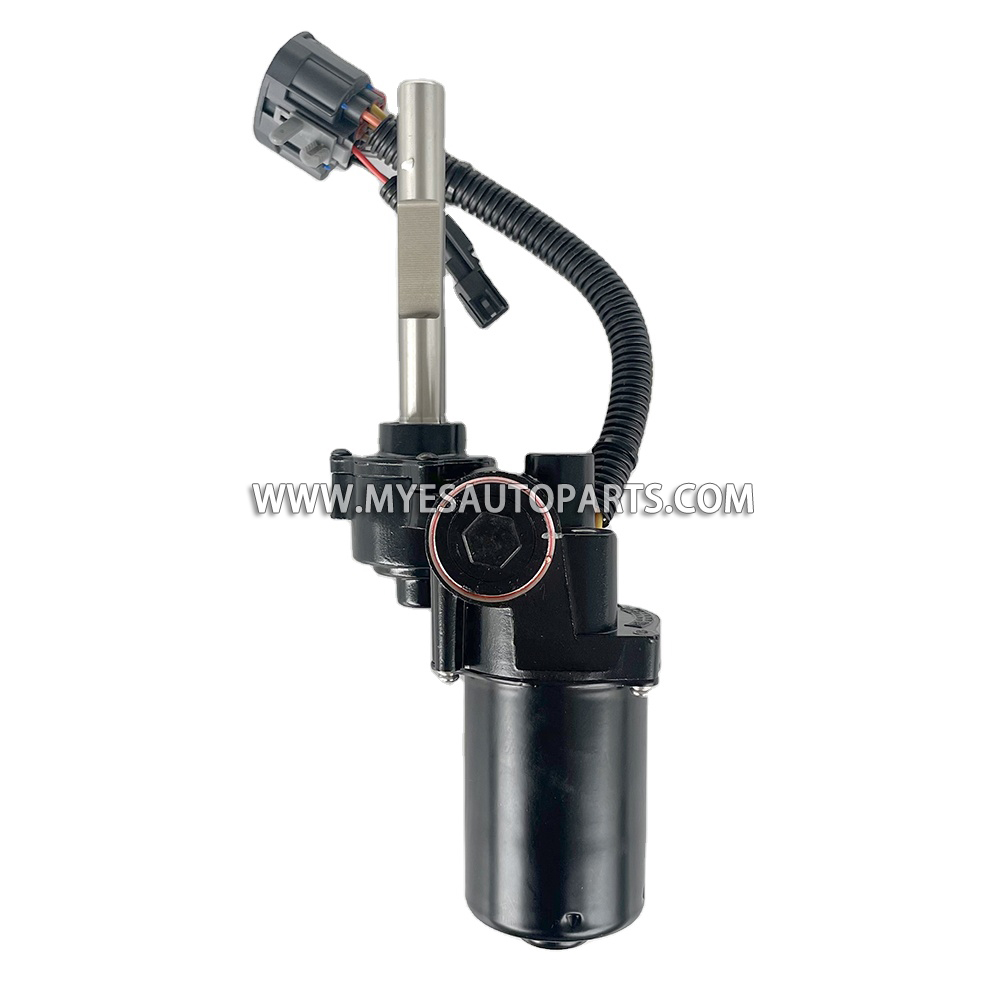

Cross-Reference OE Part Numbers:

- GM Active Factory Number: 84452643

- GM Interchanging Superseded Numbers: 23433889, 84131860, 84519646, 22935836

Operating temperature and humidity range: Temperature: -20℃ to +65℃; Humidity: 45% to 75%.

Storage temperature and humidity range: Temperature: -10 to 40℃, Humidity: 75% (maximum).

Protection level IPX7

Load: 5Nm, Speed: 14 ± 1 RPM; Current ≤ 5.0A

Load: 20Nm, Speed: 8 ± 1 RPM; Current ≤ 12A

Brake torque: Torque ≥ 50 N.m; Current ≤ 28A

Output (Output) shaft speed: 15 RPM ± 1 RPM

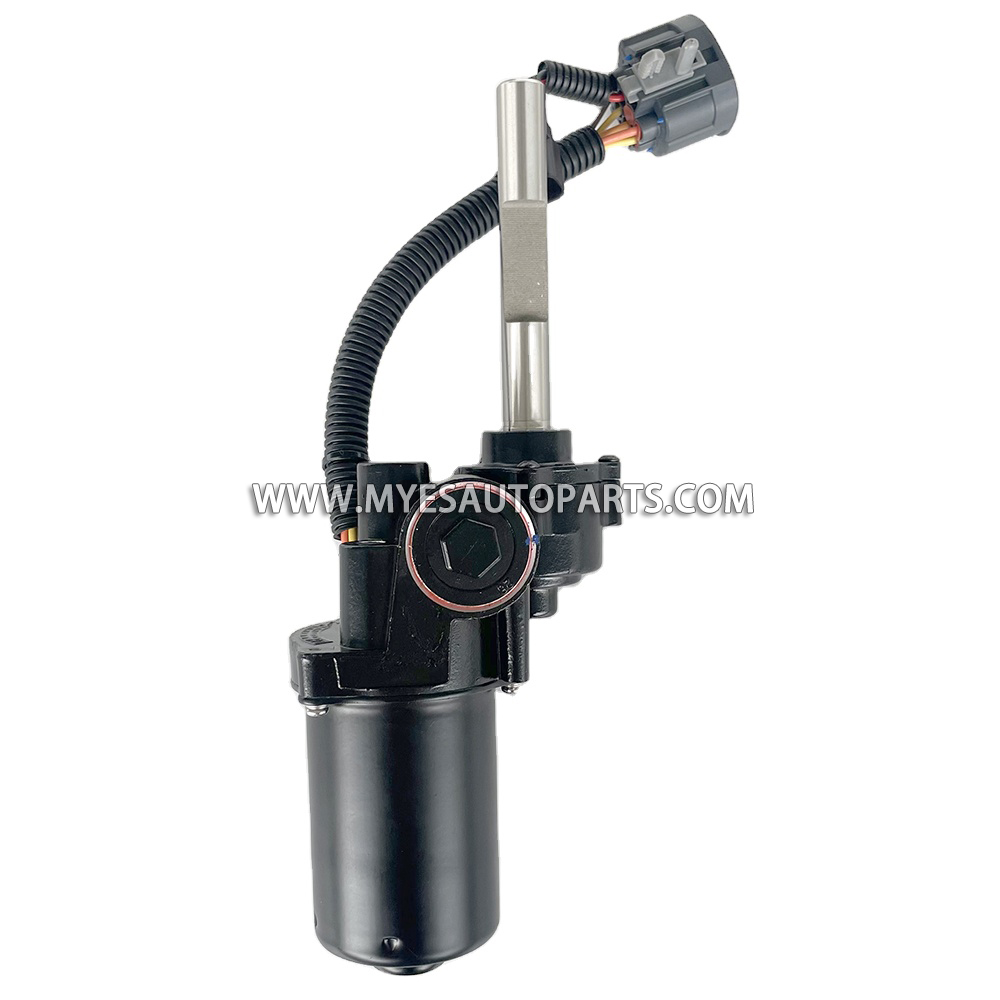

Cross-Reference OE Part Numbers:

- GM Current Active Factory Number: 84452642

- GM Replaced / Superseded Part Numbers: 23433888, 84131859, 84519645, 22935835

Operating temperature and humidity range: Temperature: -20℃ to +65℃; Humidity: 45% to 75%.

Storage temperature and humidity range: Temperature: -10 to 40℃, Humidity: 75% (maximum).

Protection level IPX7

Load: 5Nm, Speed: 14 ± 1 RPM; Current ≤ 5.0A

Load: 20Nm, Speed: 8 ± 1 RPM; Current ≤ 12A

Brake torque: Torque ≥ 50 N.m; Current ≤ 28A

Output (Output) shaft speed: 15 RPM ± 1 RPM

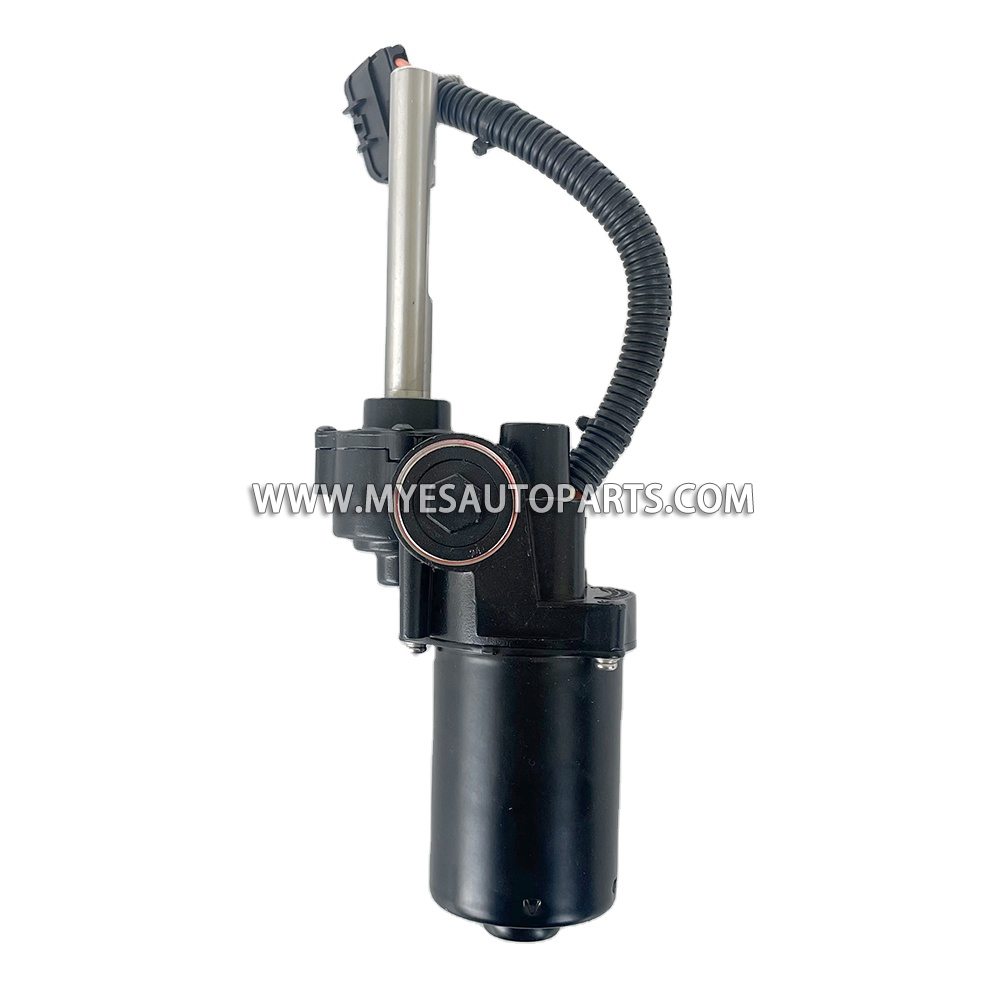

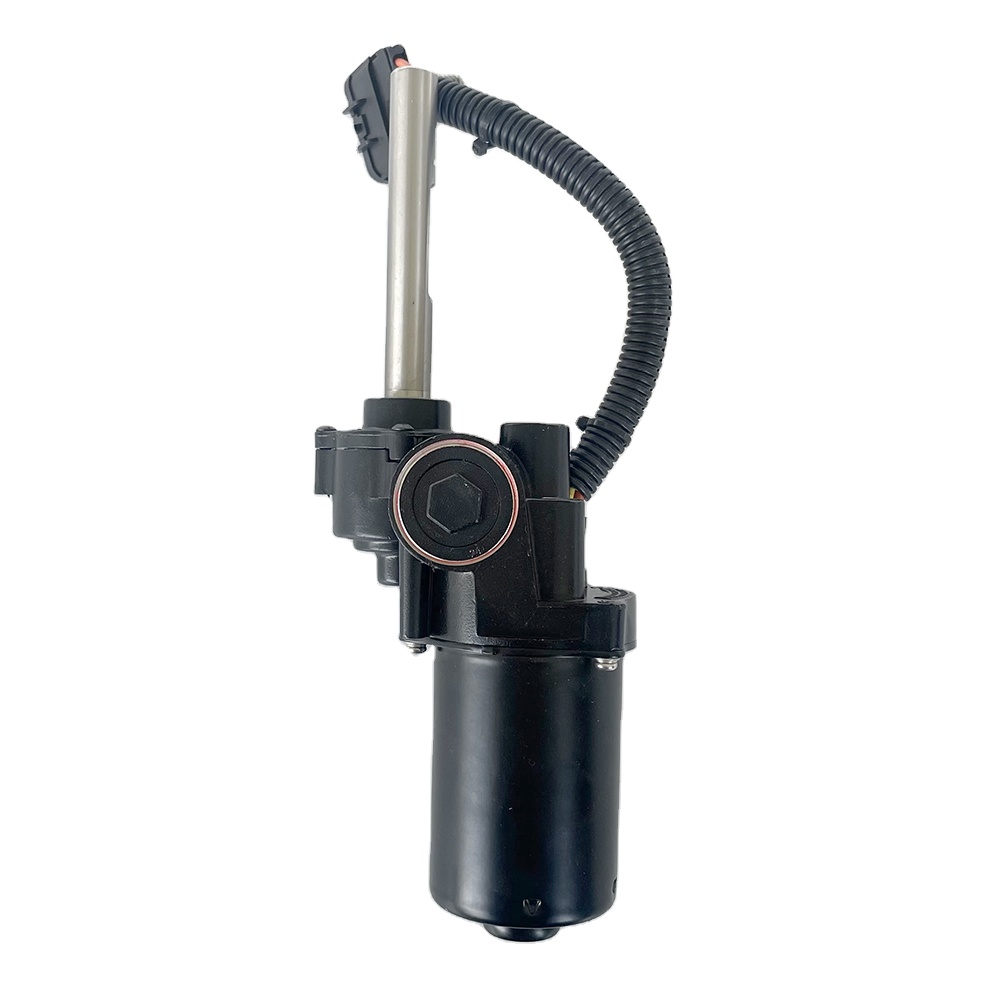

Cross-Reference OE Part Numbers:

- Dorman Interchange Number: 747-952 / 747952

- GM Official Factory Numbers: 19303236, 25822018, 25971283

Operating temperature and humidity range: Temperature: -20℃ to +65℃; Humidity: 45% to 75%.

Storage temperature and humidity range: Temperature: -10 to 40℃, Humidity: 75% (maximum).

Protection level IPX7

Load: 5Nm, Speed: 14 ± 1 RPM; Current ≤ 5.0A

Load: 20Nm, Speed: 8 ± 1 RPM; Current ≤ 12A

Brake torque: Torque ≥ 50 N.m; Current ≤ 28A

Output (Output) shaft speed: 15 RPM ± 1 RPM
