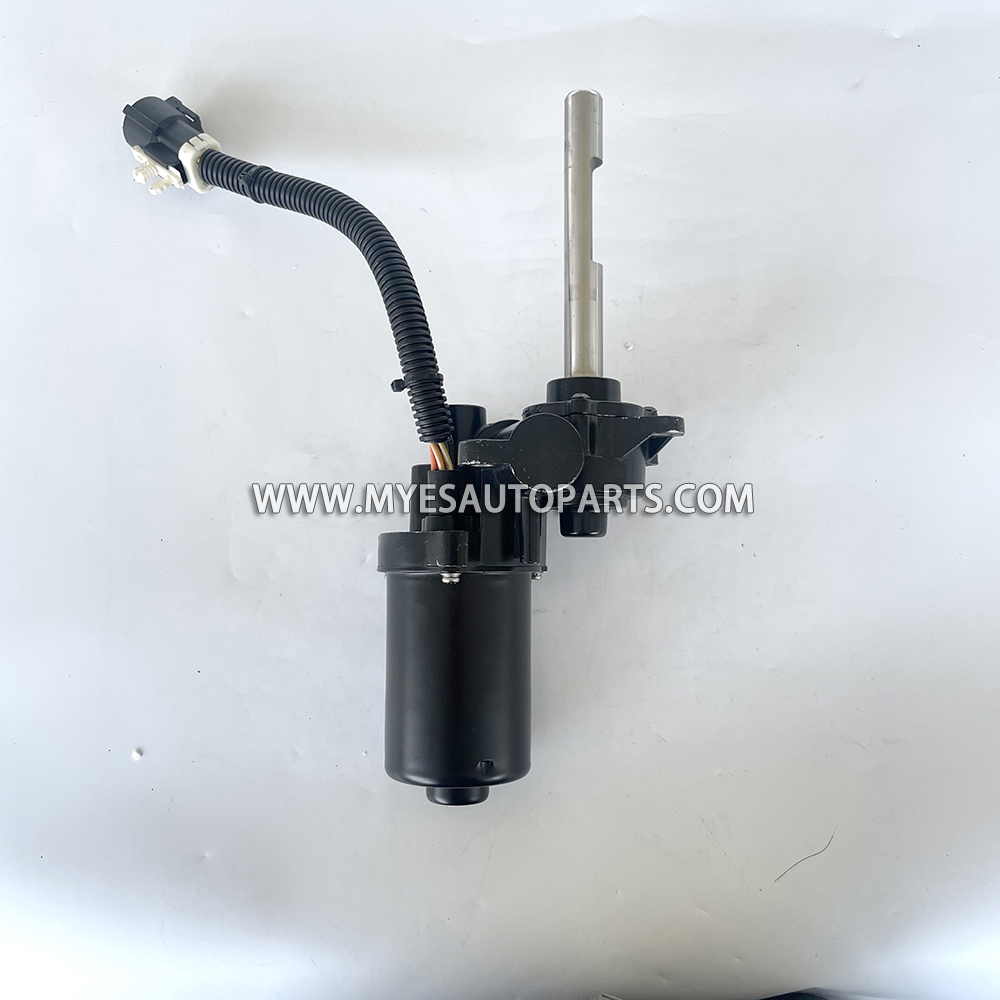

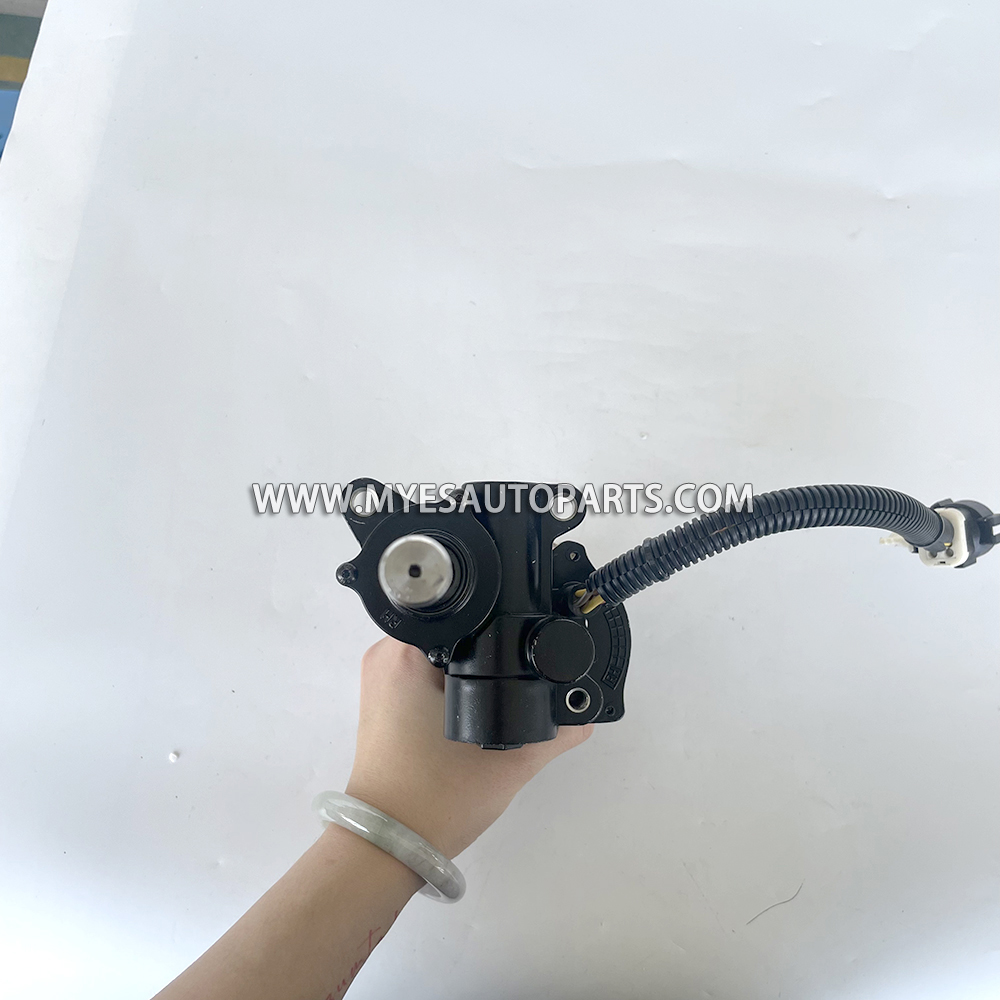

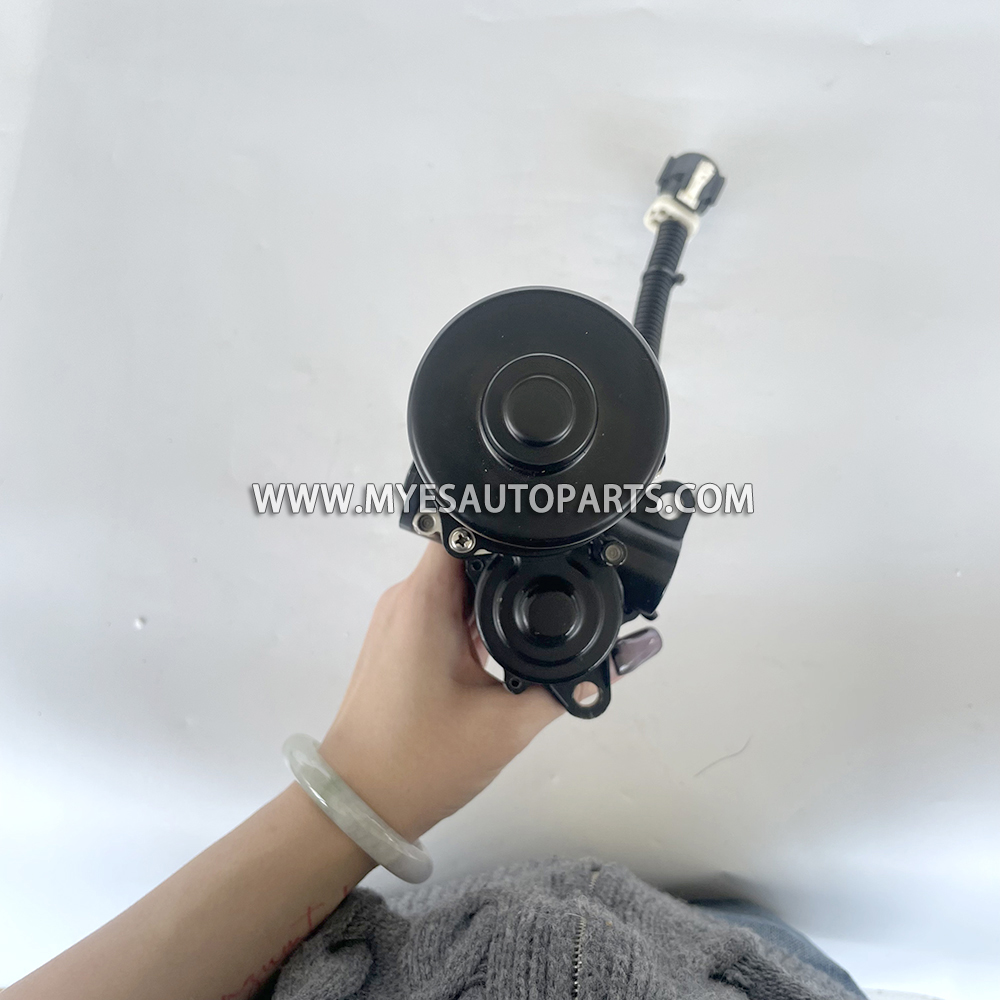

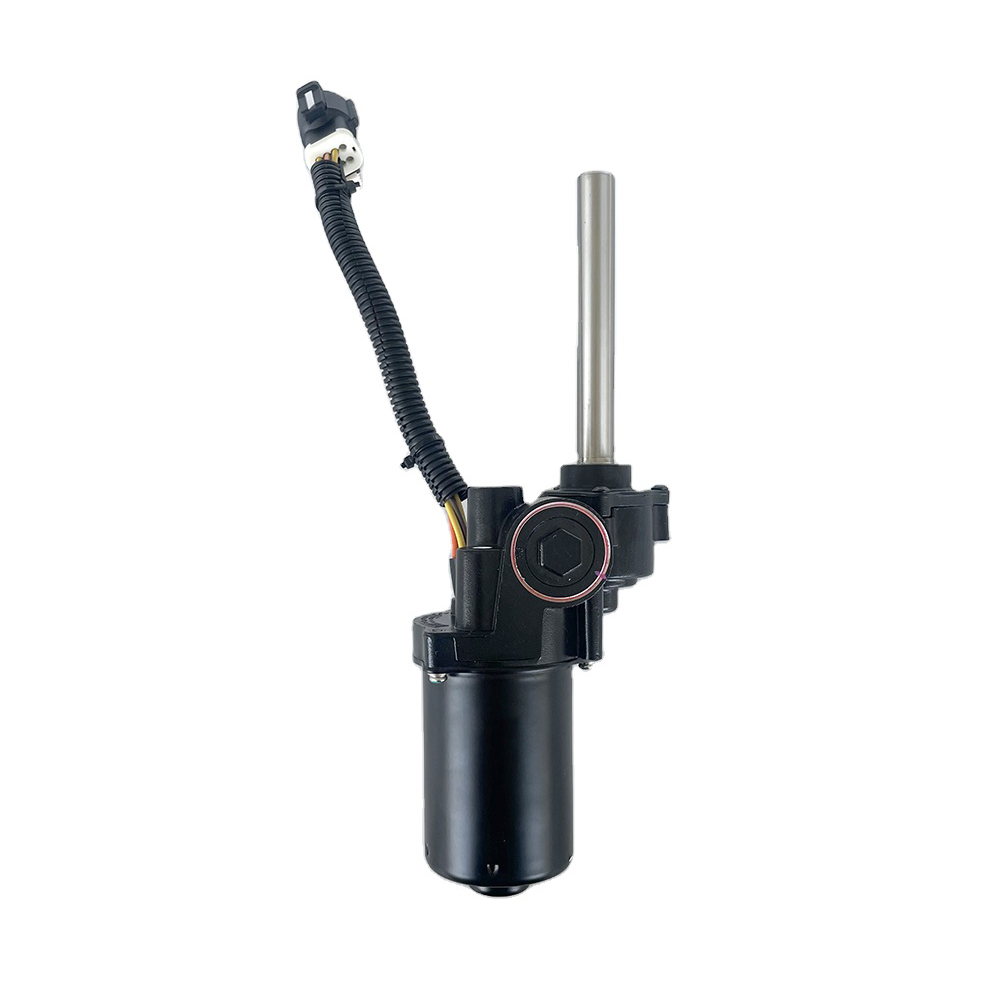

Replace your failed or burnt-out electric step actuator with this premium Left (Driver Side / LH) Power Running Board Motor.
This product is engineered as a direct plug-and-play replacement for your original factory motor mechanism, matching OEM specifications for a seamless repair process.

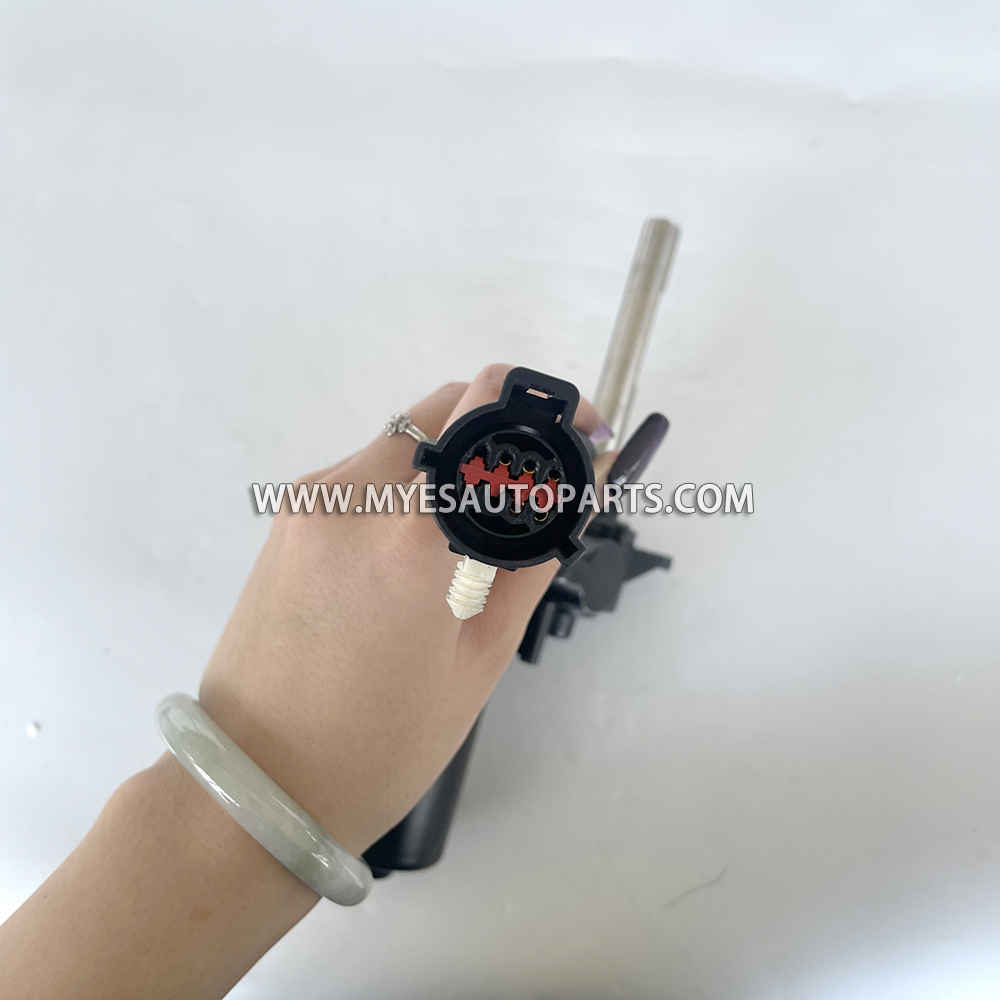

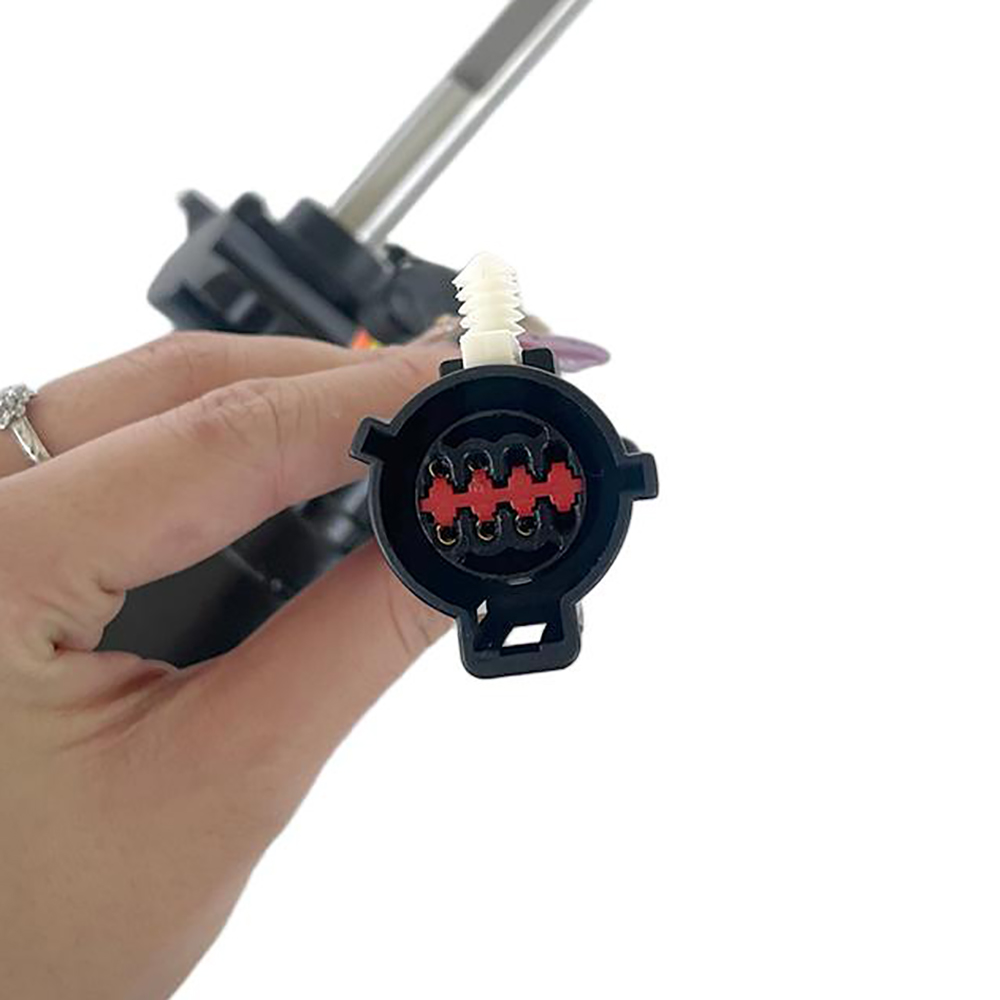

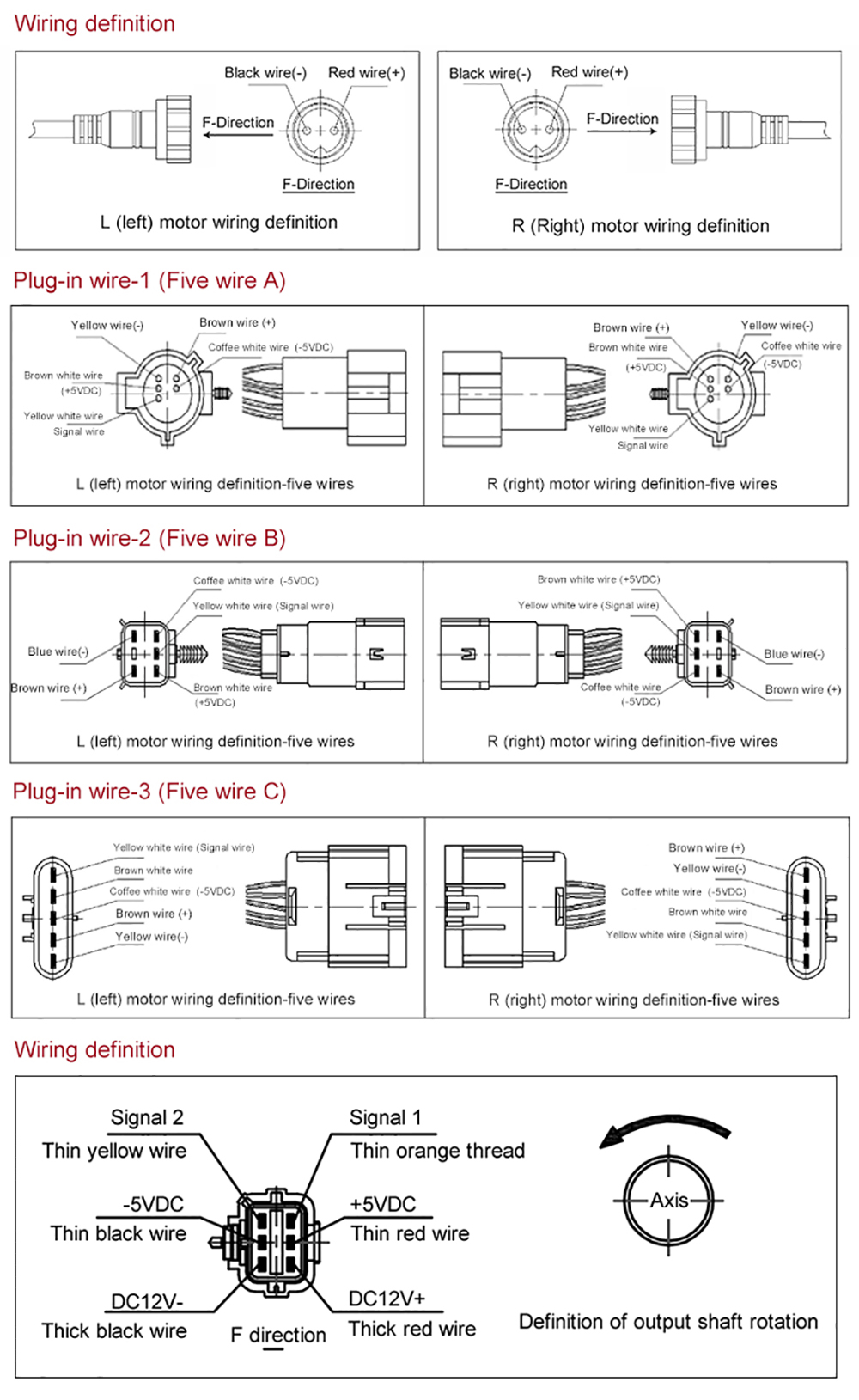

Featuring the correct factory-spec multi-pin terminal layout, this smart motor syncs immediately with your vehicle's central ECU to restore sensitive anti-pinch safety protection, precise deployment angles, and smooth closing timing.
Fitment Applications:
* 2007-2014 Ford Expedition (Left Driver Side - 119" Wheelbase Only)
* 2007-2014 Lincoln Navigator (Left Driver Side - 119" Wheelbase Only)
* 2007-2012 Land Rover Range Rover L322 (Left LH Driver Side)
Cross-Reference OE & Aftermarket Part Numbers:
* Dorman Aftermarket: 747-953, 747953
* Land Rover Genuine: LR004807, VPLMP0041
* Ford Official Factory: 9L7Z16A507A, 9L7Z-16A507-A
* Ford Older Superseded: 7L7Z16A507A, 7L7Z-16A507-A
Product Key Features:
* High-Performance Actuator: Restores full automatic deployment and smooth retraction functionality to your running board system.
* Intelligent Position Tracking: Built-in internal sensor array integrates seamlessly with factory door modules to eliminate dashboard error signals.

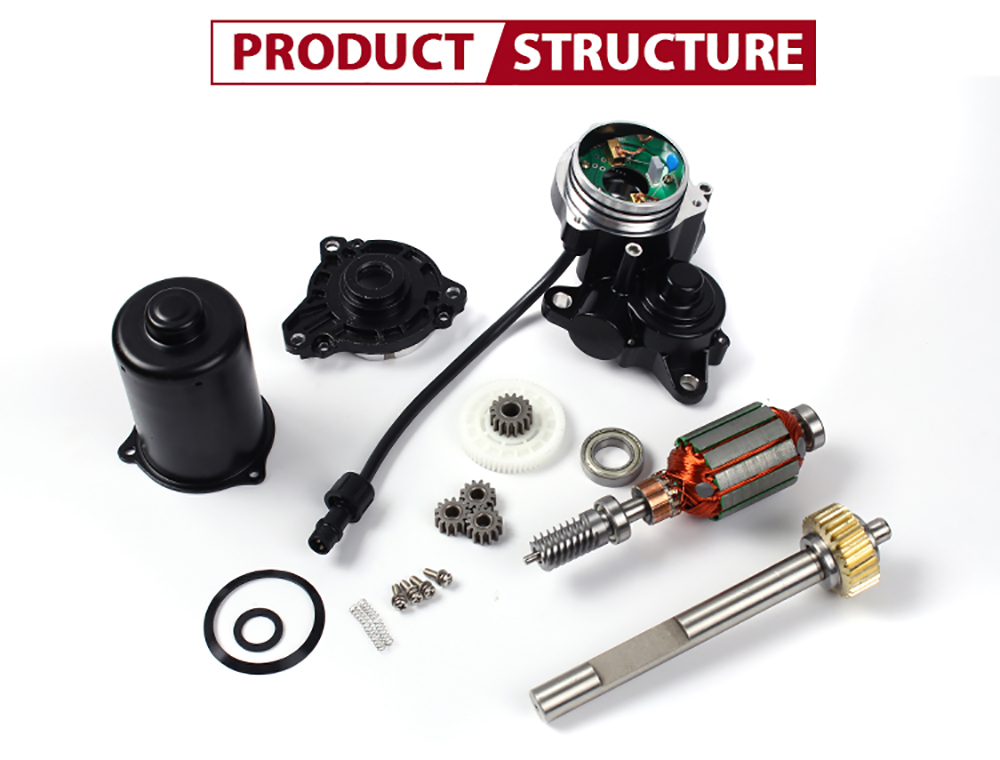

* Upgraded Internal Gears: Constructed with hardened steel mechanics to permanently prevent common plastic gear stripping and grinding noises.
* Heavy All-Weather Protection: Sealed anti-corrosive housing (IPX7 rated) protects internal electronics against winter road salt, thick mud, and high-pressure undercarriage washes.
[Looking for the passenger side? Click here for the Right Side Power Running Board Motor]
| No. | Project | Standards | Remarks |
| 1 | Rated voltage | DC 12V |
|
| 2 | No-load current | ≤ 2.5A |
|
| 3 | Rated power | 80W |
|
| 4 | Frequency | 50/60Hz |
|
| 5 | Load 5Nm | Rotation speed14± 1 RPM;current≤5A |
|
| 6 | Load 20Nm | Rotation speed 8± 1 RPM;current≤12A |
|
| 7 | Brake torque | Torque ≥50N.m;current≤28A |
|
| 8 | Output shaft rotation speed | 15 RPM ± 1 RPM |
|

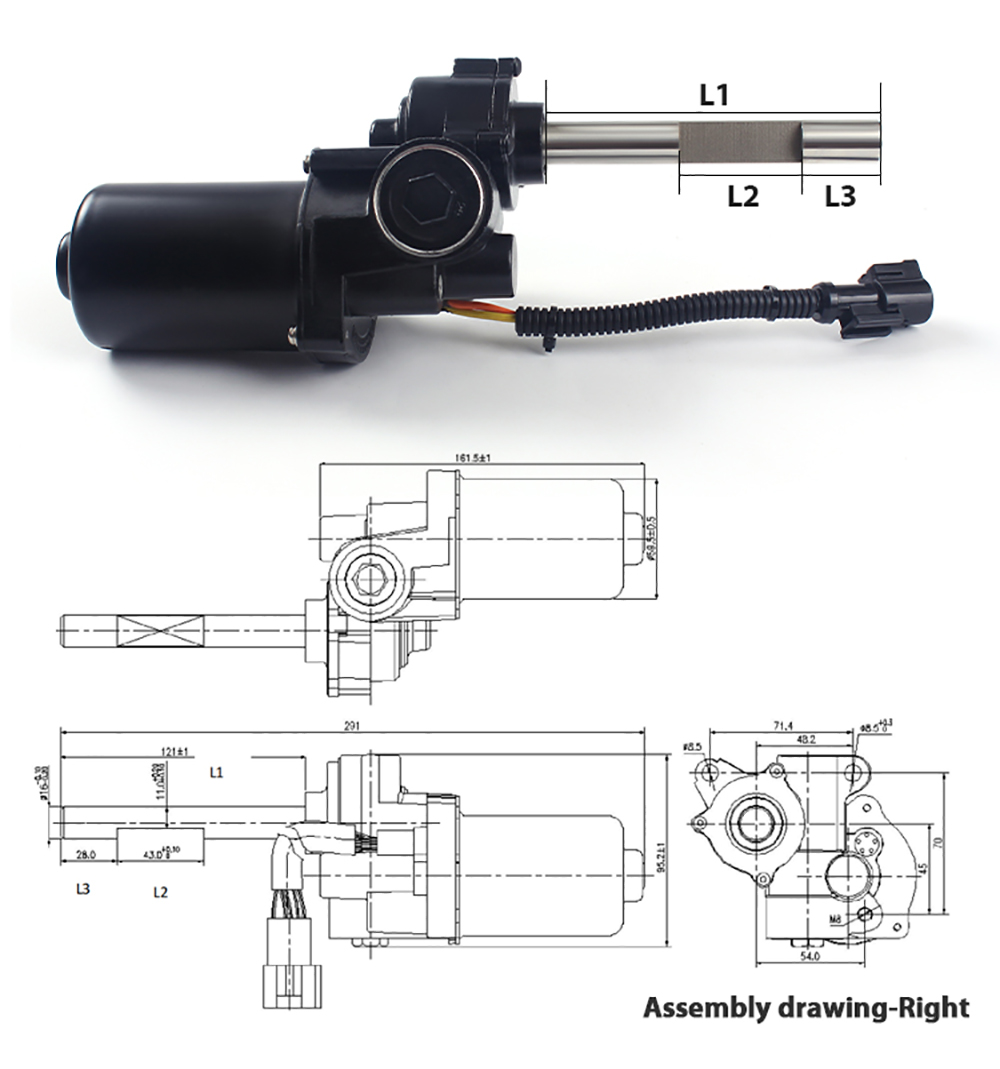

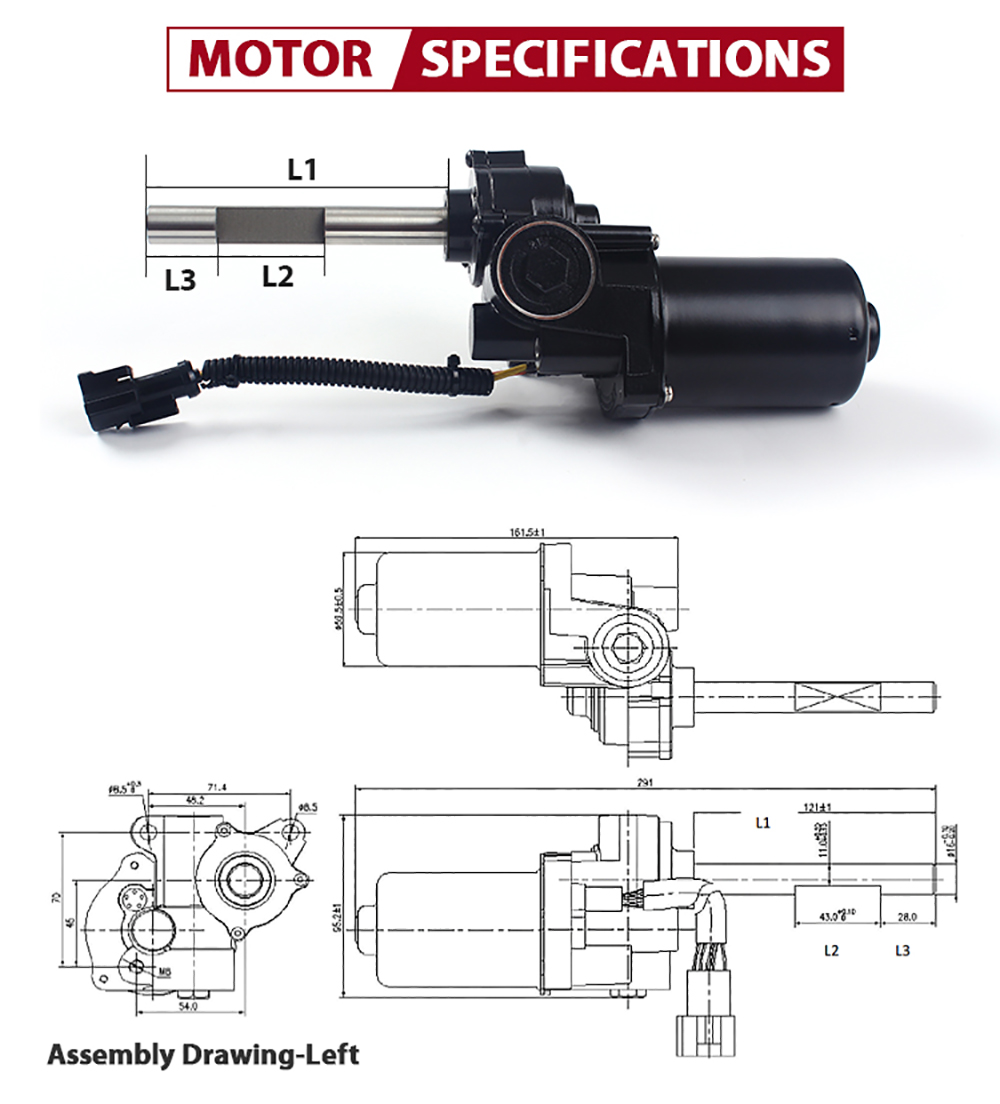

| 9 | Output shaft steering | Refer to the appearance drawing | L (Left) Motor: Counterclockwise |
| R(Right) Motor: Clockwise |
| 10 | Noise | ≤ 60dB | 300mm from the center of the motor Horizontal position |
| 11 | Number of poles | 2-pole |
|
| 12 | Insulation level | F grade |
|
| 13 | Protection level | IPX7 |
|
FAQs
Q: What models does this electric step motor fit for?
A: It fits most SUV and pickup electric running boards, compatible with mainstream car brands and various year models.
Q: Is this motor original OEM quality?
A: Yes, it adopts OEM standard production, same performance as original factory parts.
Q: What is the waterproof grade of the motor?
A: IPX7 waterproof and dustproof, suitable for all weather and complex road conditions.
Q: What materials is the motor made of?

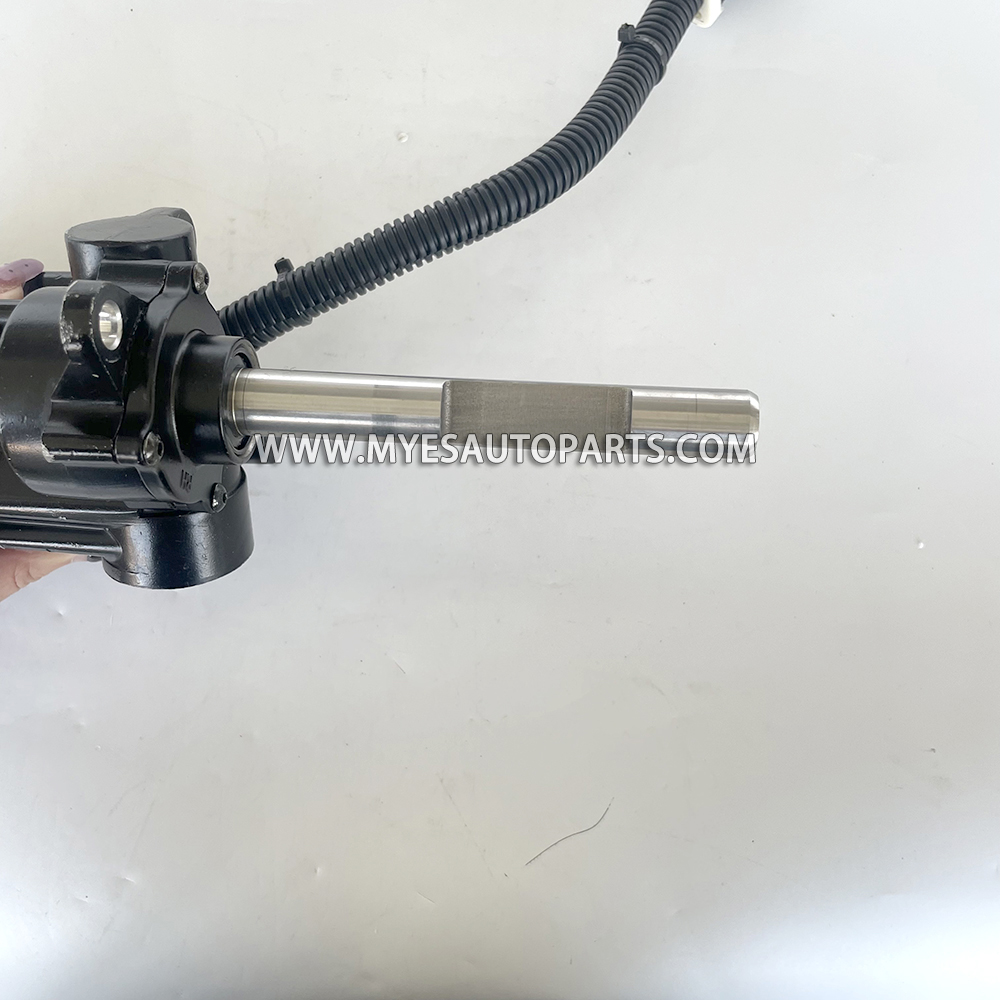

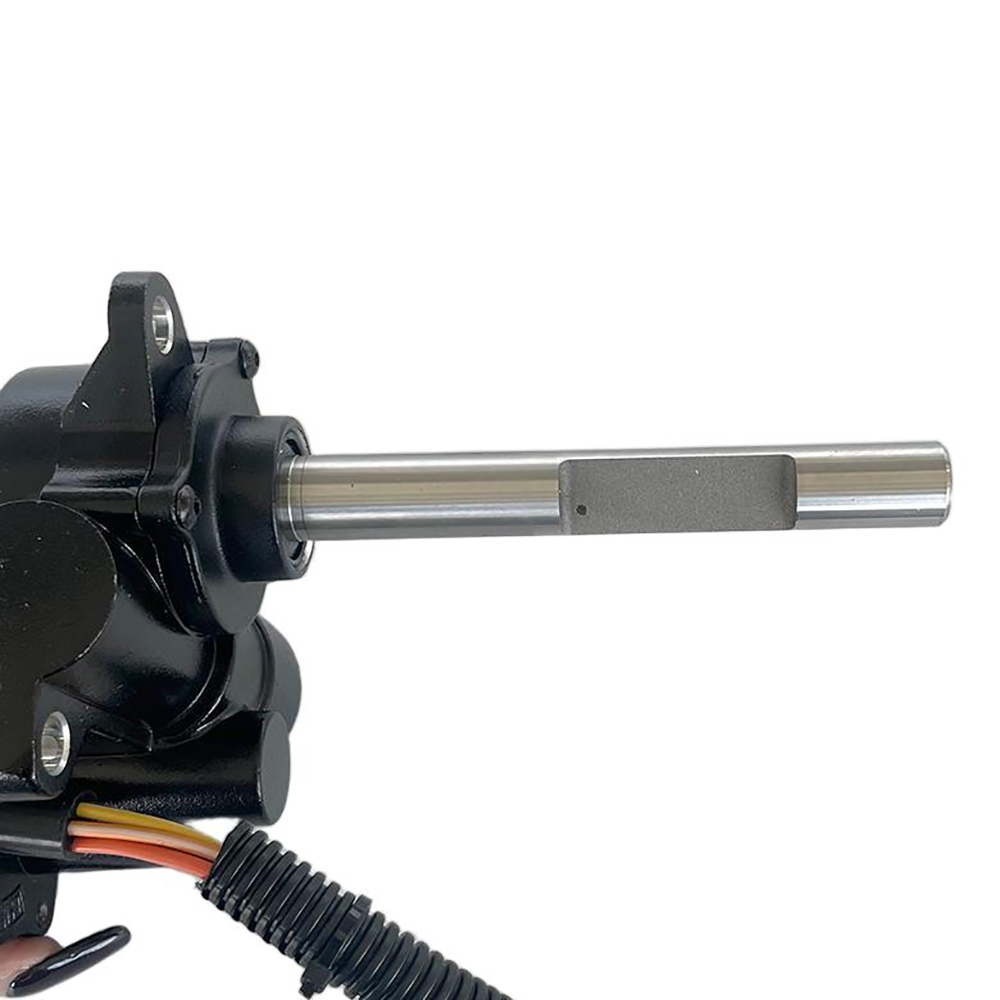

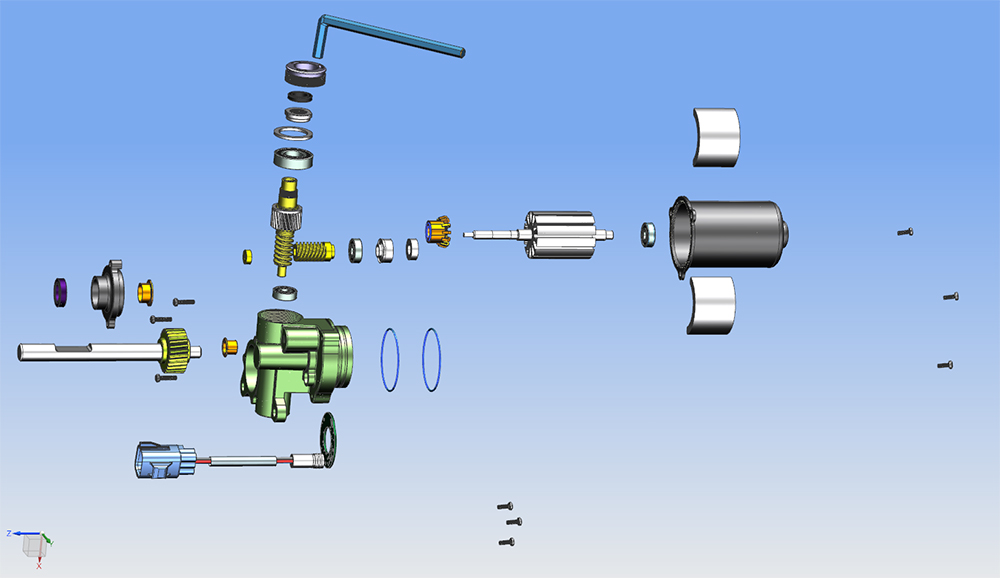

A: The motor uses stainless steel output shaft, die-cast aluminum housing with anti-corrosion coating, pure copper coil, and high-strength metal gears. The cable is TPU-insulated with a nylon waterproof connector, ensuring durability and long service life.
Q: Does the motor support easy replacement?
A: Plug and play design, direct replacement, no wire cutting or programming needed.
Q: Will the motor make loud noise when working?
A: Low noise stable operation, smooth telescoping without abnormal sound.

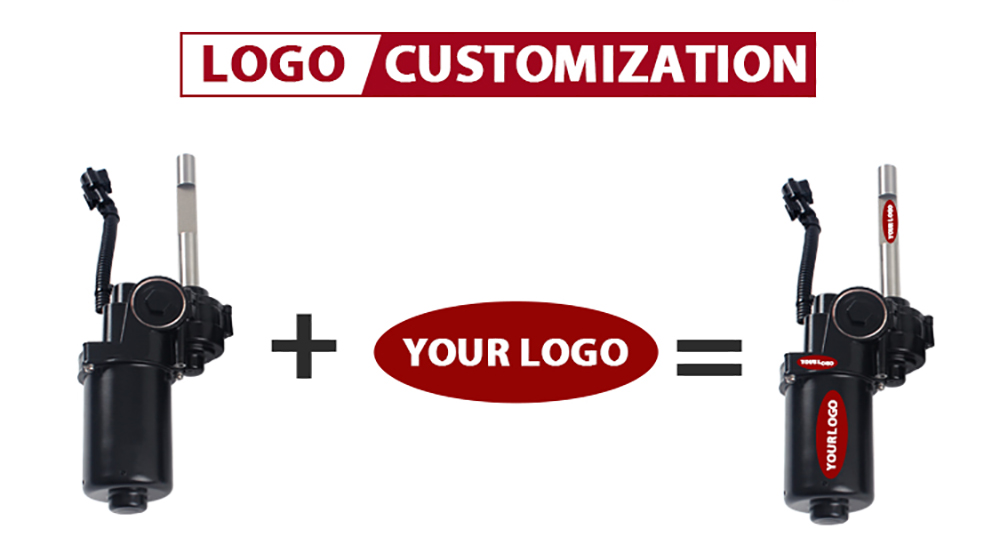

Q: Can you customize or develop new motor models?
A: We support OEM & ODM, can customize motors according to customers samples or drawings.
