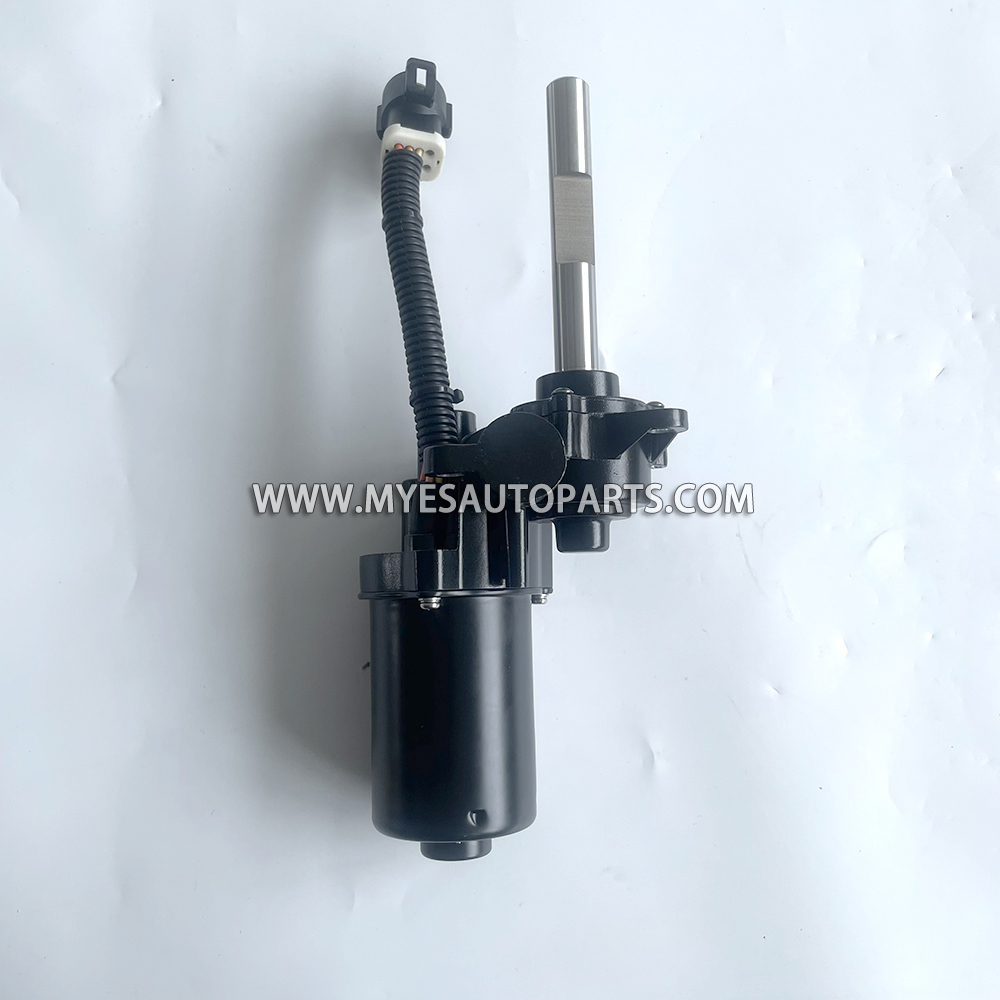

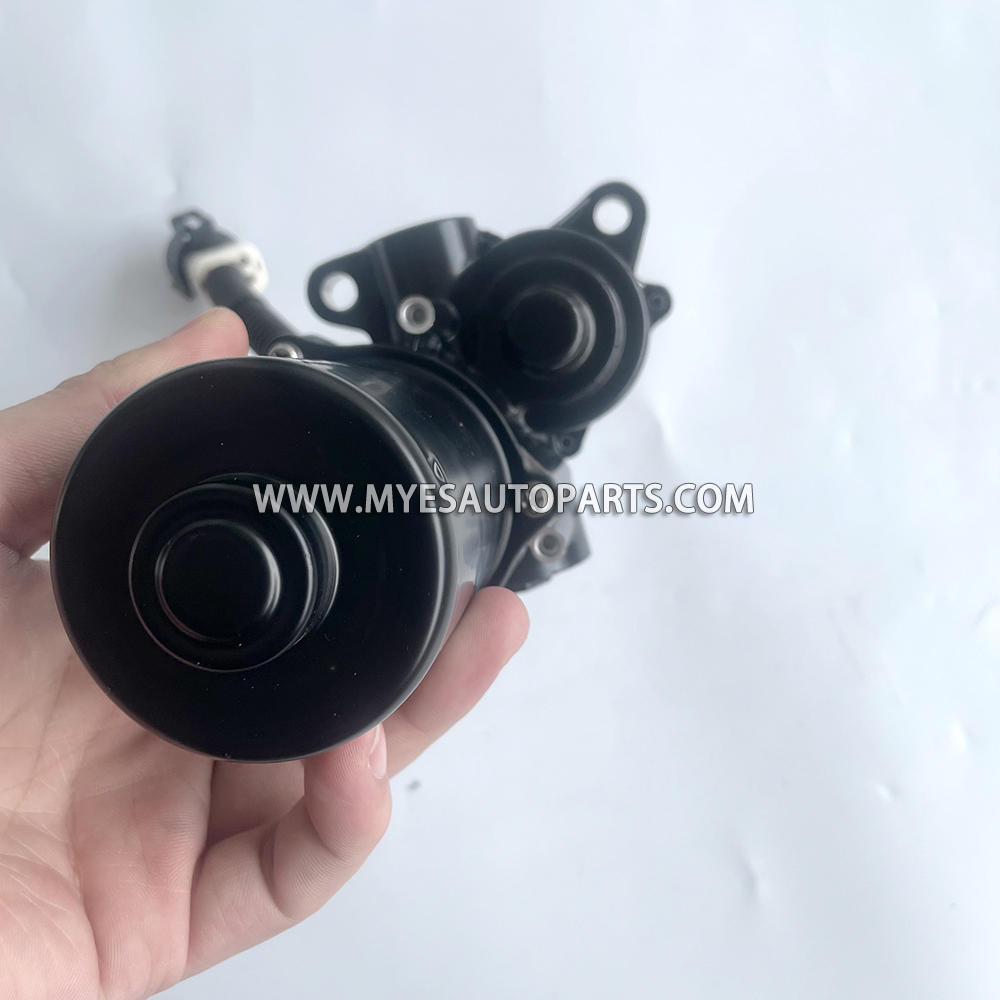

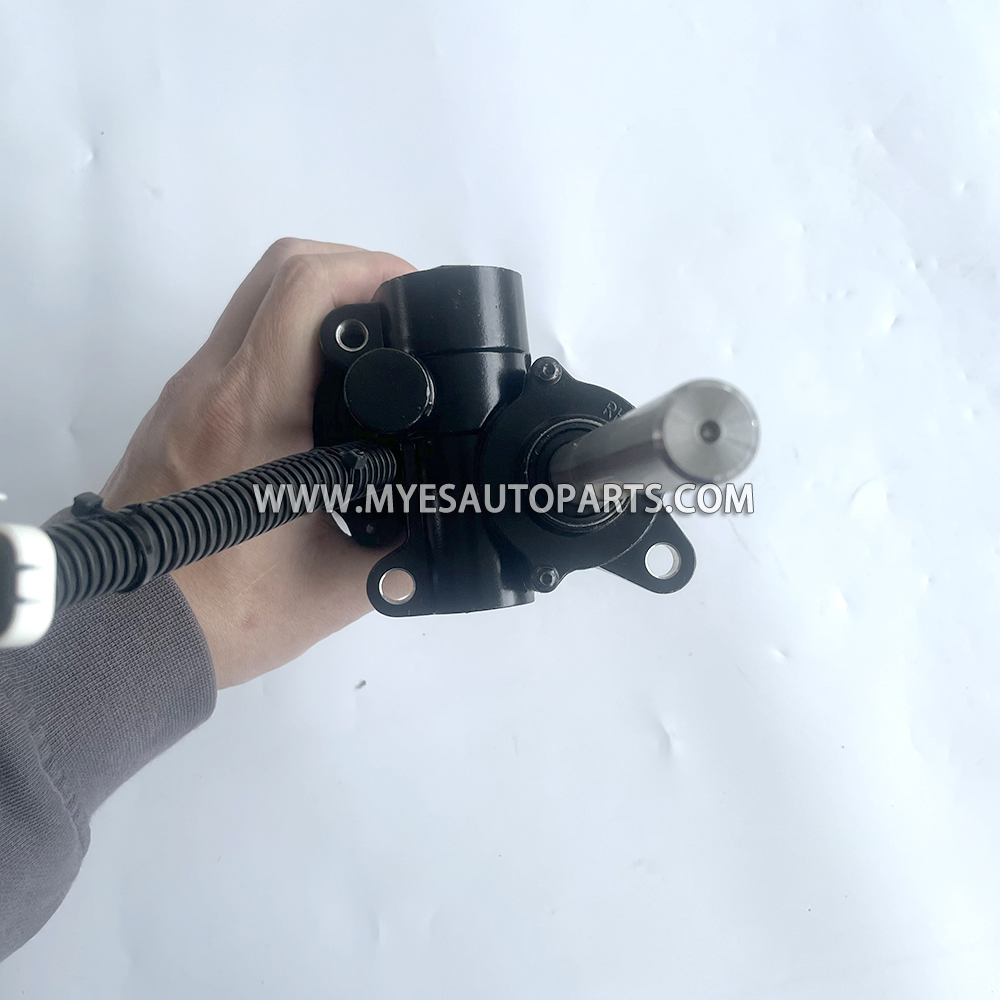

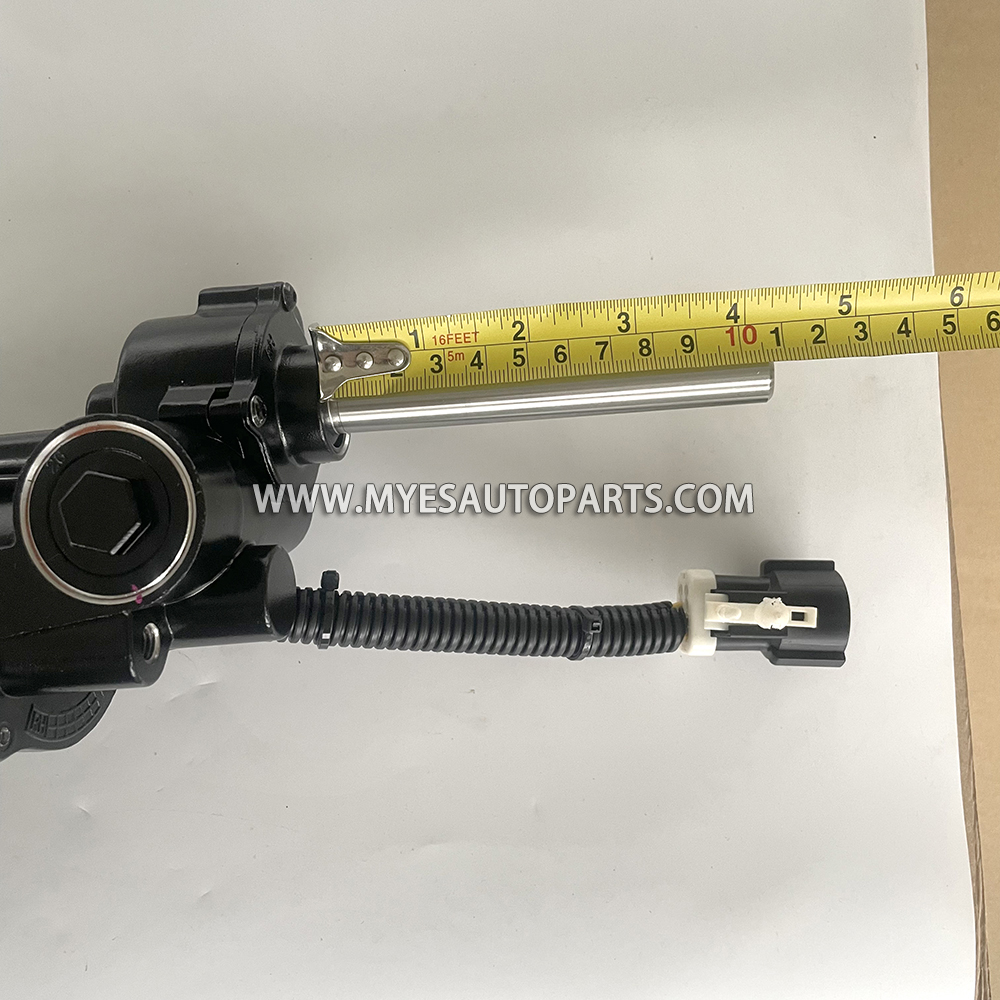

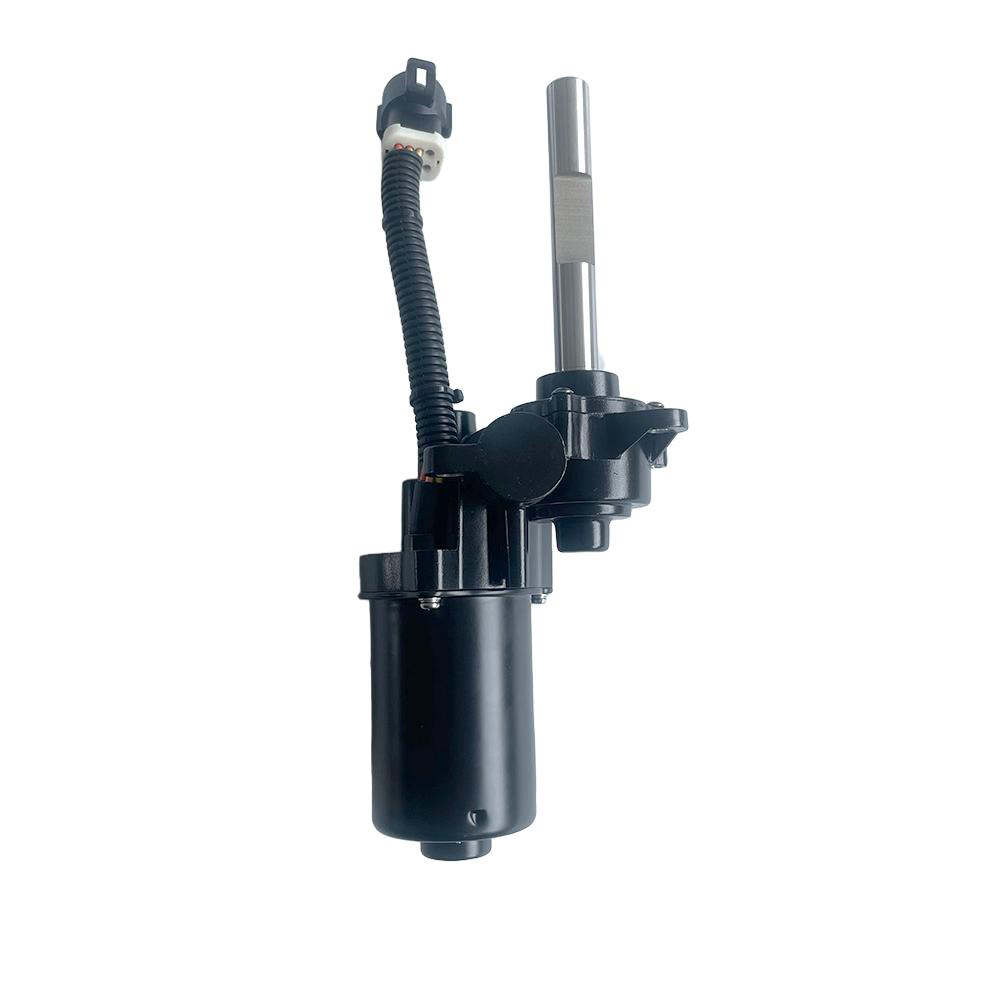

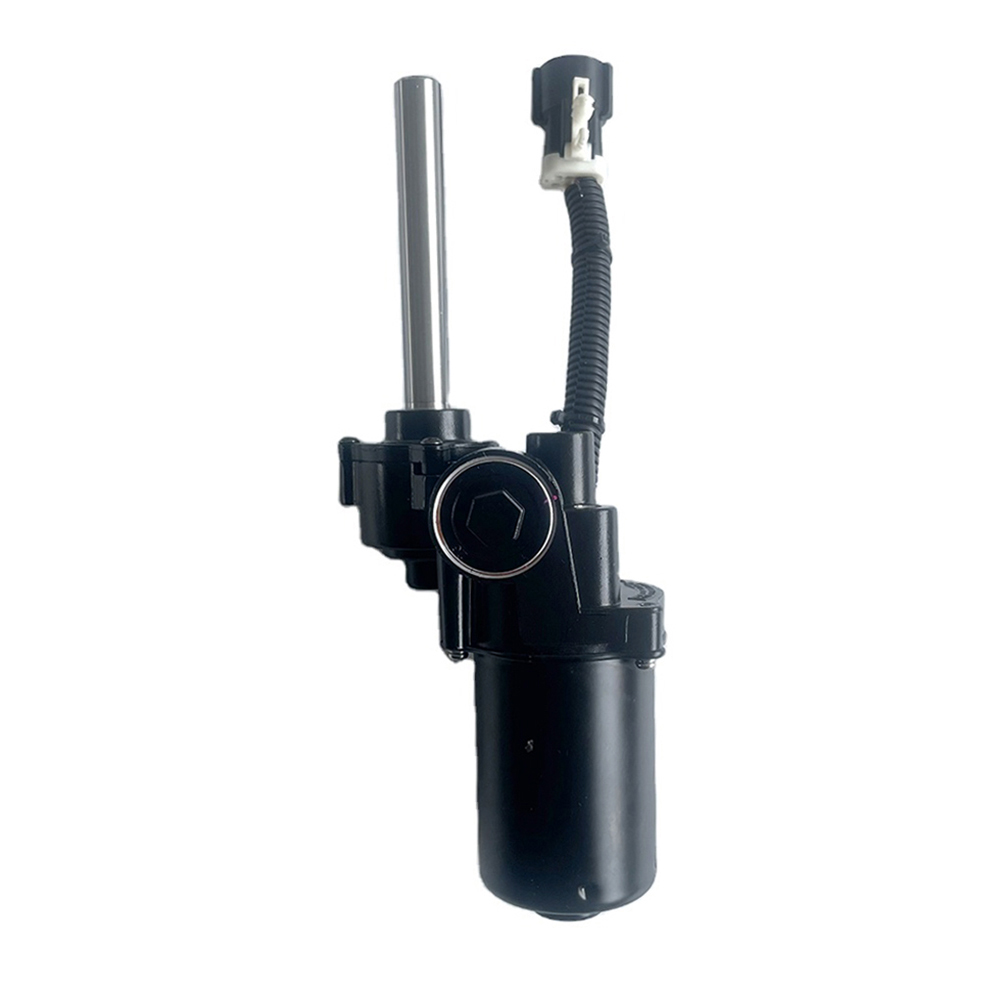

Restore luxury utility and smooth automated functionality to your vehicle's passenger-side step with this premium Right (Passenger Side / RH) Deployable Side Step Power Motor. Engineered to meet or exceed strict Land Rover factory standards, this smart electric actuator serves as a direct plug-and-play fix for power steps that are sluggish, locked, or making loud grinding noises.
Equipped with an integrated 5-pin position feedback encoder, this motor syncs seamlessly with your vehicle's central ECU. This maintains factory synchronization, custom step deployment delays, and sensitive anti-pinch safety obstruction loops.
Fitment Applications:
* 2013-2021 Land Rover Range Rover Vogue (L405 Chassis - Standard Wheelbase SWB Only)
* Position: Right Hand (Passenger Side / RH) Only
Cross-Reference OE Part Numbers:
* Land Rover Factory: VPLGP0136, VPLGP0140, VPLGP0139
* Companion Left Side SKU (Sold Separately): VPLGP0153
Key Product Features:
* High-Performance Actuator: Restores full automatic deployment and smooth retraction functionality to your running board system.

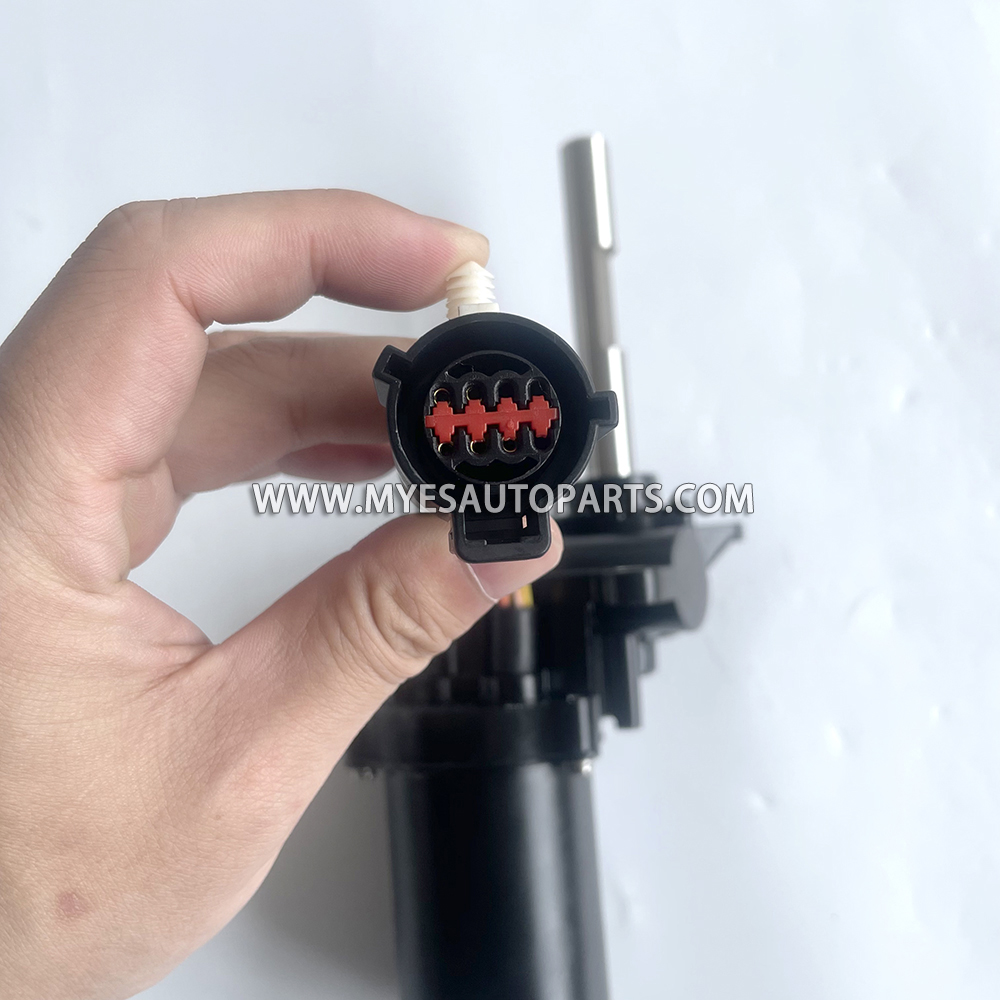

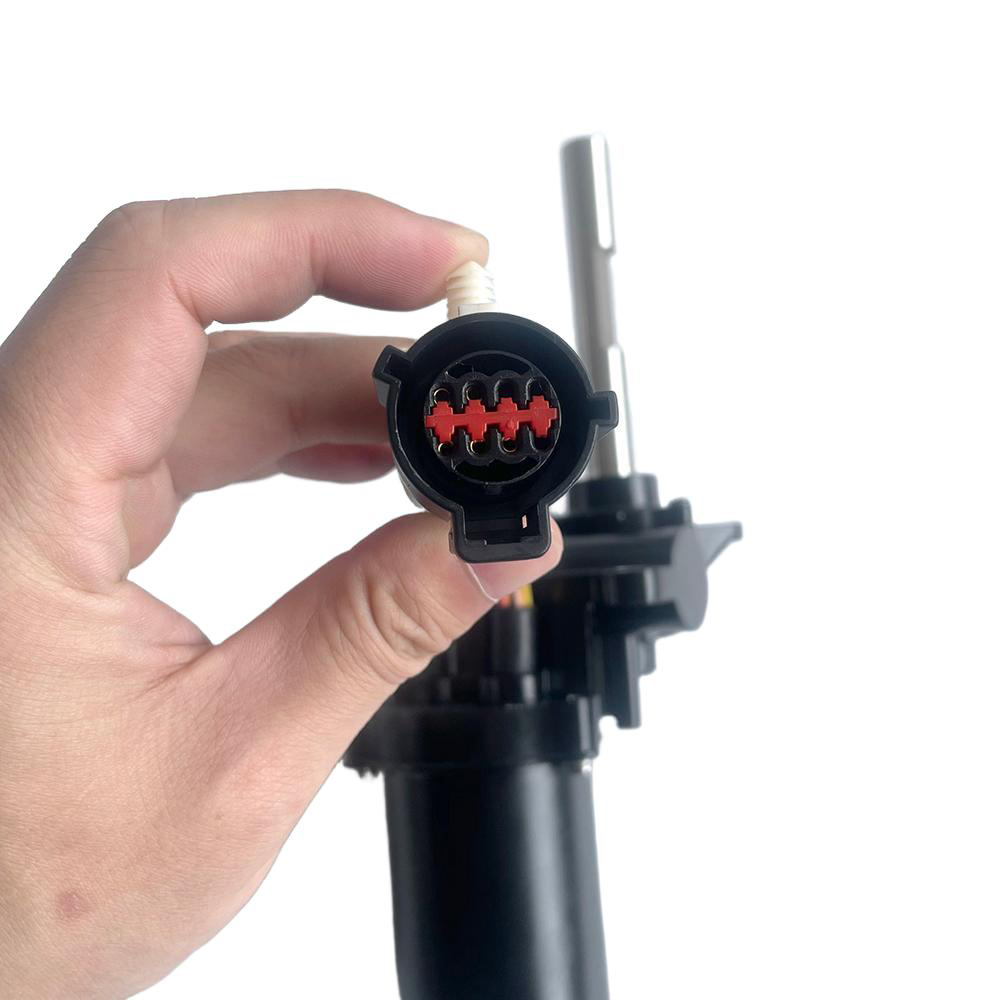

* Exact-Fit Harness: Factory-molded plug clips directly into the undercarriage wiring harness with zero splicing required.
* Upgraded Internal Gears: Constructed with hardened metal mechanics to prevent the stripping issues common in low-tier replacements.
* Weather-Sealed Security: IP67-rated waterproof housing protects internal electronics from high-pressure car washes and winter road salt.
[Click here for the Power Running Board Motor]
| No. | Project | Standards | Remarks |
| 1 | Rated voltage | DC 12V |
|
| 2 | No-load current | ≤ 2.5A |
|
| 3 | Rated power | 80W |
|
| 4 | Frequency | 50/60Hz |
|
| 5 | Load 5Nm | Rotation speed14± 1 RPM;current≤5A |
|
| 6 | Load 20Nm | Rotation speed 8± 1 RPM;current≤12A |
|
| 7 | Brake torque | Torque ≥50N.m;current≤28A |
|
| 8 | Output shaft rotation speed | 15 RPM ± 1 RPM |
|
| 9 | Output shaft steering | Refer to the appearance drawing | L (Left) Motor: Counterclockwise |
| R(Right) Motor: Clockwise |
| 10 | Noise | ≤ 60dB | 300mm from the center of the motor Horizontal position |
| 11 | Number of poles | 2-pole |
|
| 12 | Insulation level | F grade |
|
| 13 | Protection level | IPX7 |
|
FAQs
Q: What models does this electric step motor fit for?
A: It fits most SUV and pickup electric running boards, compatible with mainstream car brands and various year models.
Q: Is this motor original OEM quality?
A: Yes, it adopts OEM standard production, same performance as original factory parts.
Q: What is the waterproof grade of the motor?
A: IPX7 waterproof and dustproof, suitable for all weather and complex road conditions.
Q: What materials is the motor made of?

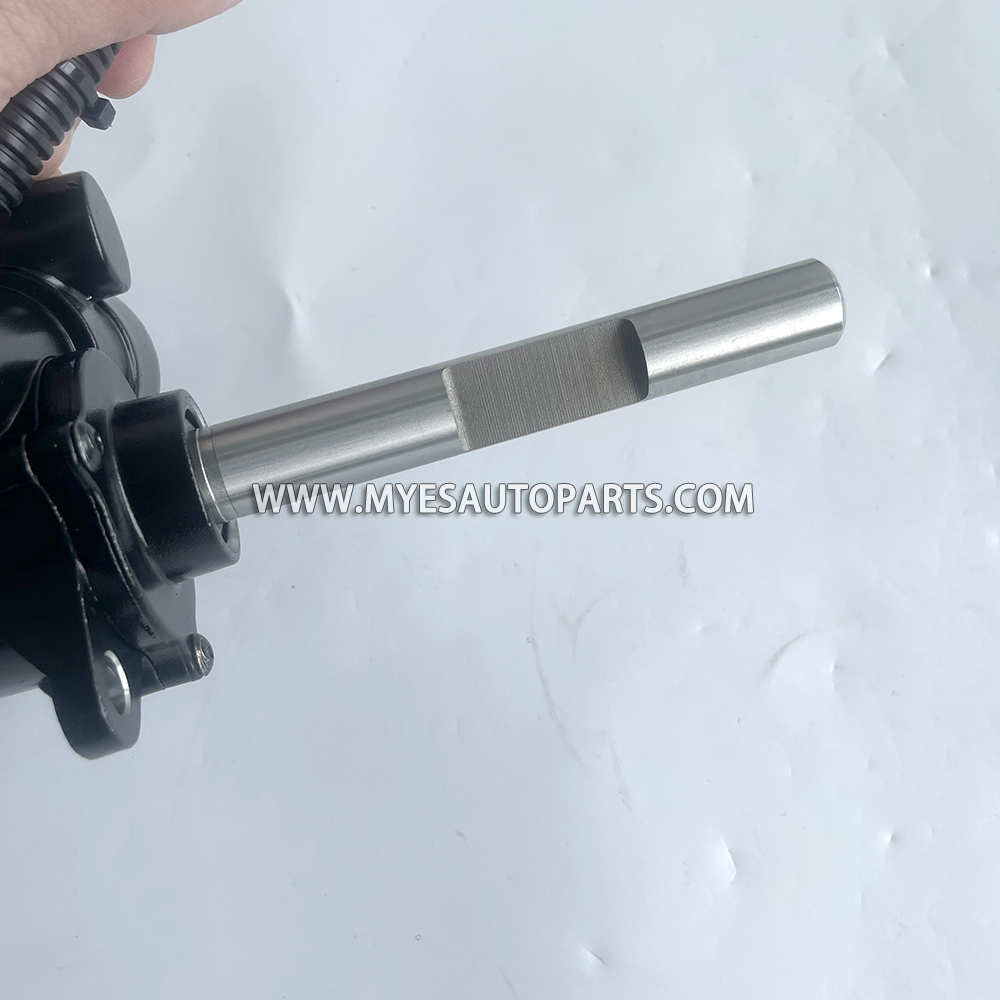

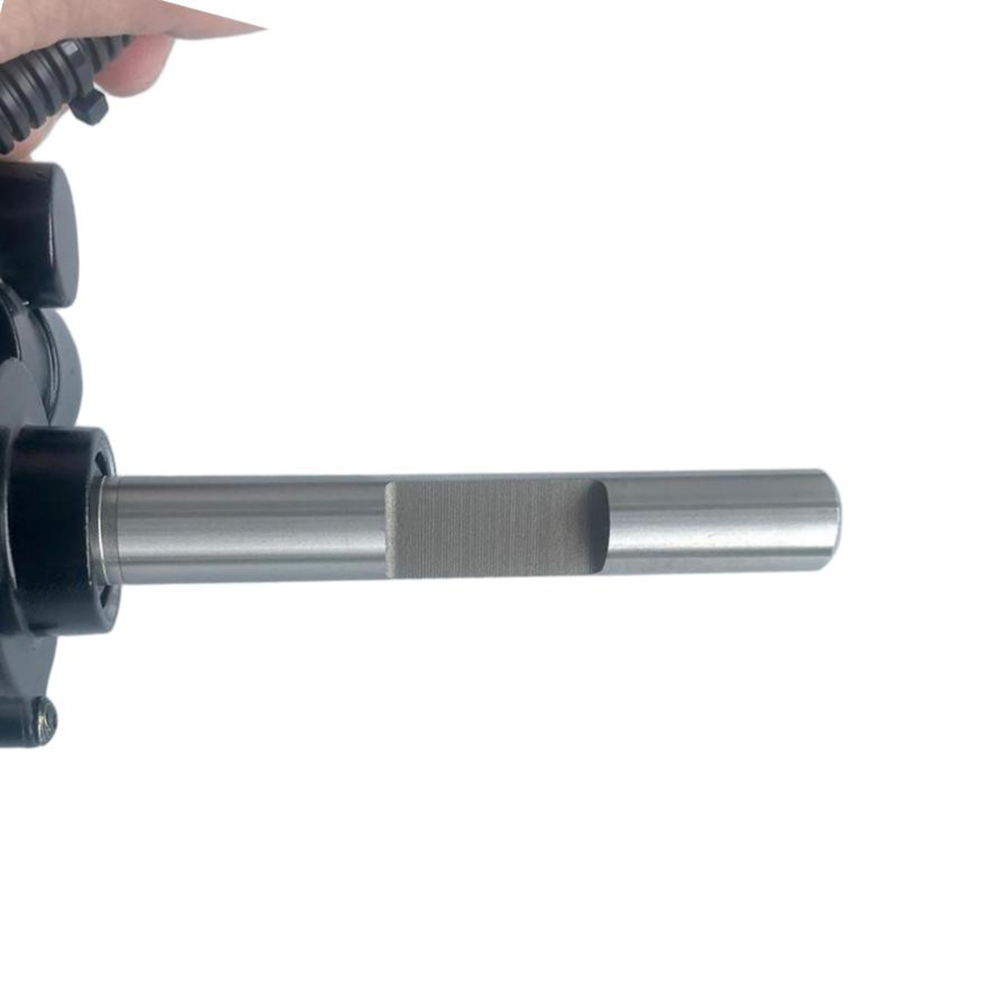

A: The motor uses stainless steel output shaft, die-cast aluminum housing with anti-corrosion coating, pure copper coil, and high-strength metal gears. The cable is TPU-insulated with a nylon waterproof connector, ensuring durability and long service life.
Q: Does the motor support easy replacement?
A: Plug and play design, direct replacement, no wire cutting or programming needed.
Q: Will the motor make loud noise when working?
A: Low noise stable operation, smooth telescoping without abnormal sound.
Q: Can you customize or develop new motor models?
A: We support OEM & ODM, can customize motors according to customers samples or drawings.
