The Commercial Guide to Sourcing Manual Retractable Tonneau Covers
Part 1: Introduction
For automotive exterior parts distributors and fleet upgrade networks, manual retractable tonneau covers represent a highly stable, high-volume market segment. Without complex electrical architectures, manual roller shutters must rely entirely on superior mechanical durability, waterproofing, and anti-theft security. This guide outlines the structural criteria, dimensions, and materials required for professional volume procurement evaluation.
Part 2: Core Selling Points & Advantages
High Structural Security: Engineered to support up to 100 kg (220 lbs) of distributed static load on top of the closed shutter profile, effectively preventing cargo crushing.
Tension Spring Assist: Equipped with a heavy-duty tempered steel internal torsion spring mechanism, allowing smooth, continuous, and effortless one-handed opening and closing cycles.
Anti-UV Matte Finish: Coated with a premium matte black textured finish that withstands harsh winter road salts and chemical wear without fading.
Part 3: System Components & Hardware
To guarantee long-term mechanical reliability and ensure a seamless turn-key assembly for global distributors, our manual retractable tonneau cover kit consists of precision-engineered primary structures and heavy-duty installation hardware:

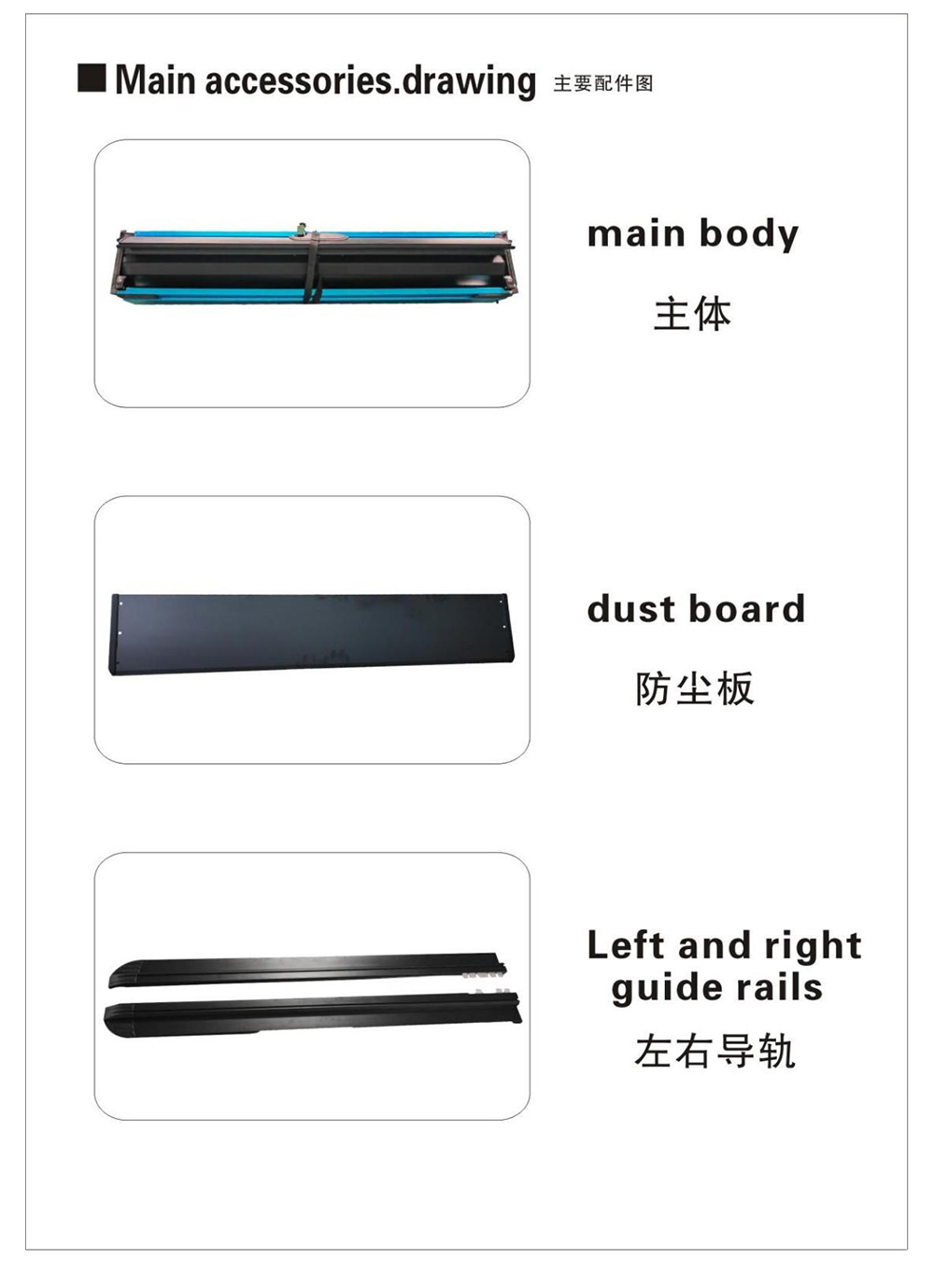

1. Primary Structural Assemblies
Main Body Shutter Box: Heavy-duty aluminum roller shutter integrated inside the main housing canister with built-in tension spring technology.
Front Dust Deflector: Specialized matte black deflector shield preventing road dust and debris from entering the rolling mechanism.
Left and Right Guide Rails: Multi-stage side tracks ensuring smooth, friction-free, and perfectly aligned rolling trajectories.

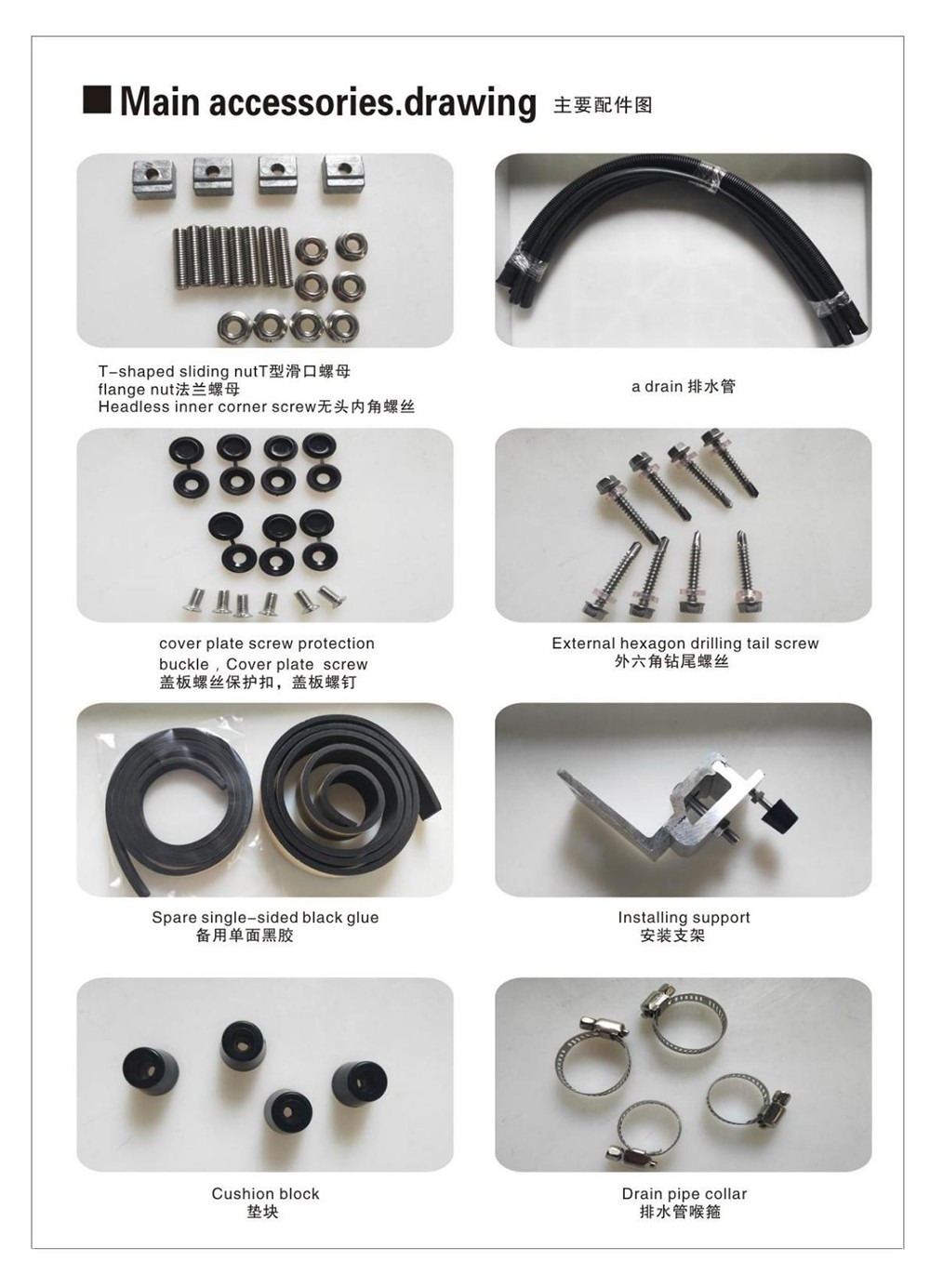

2. Premium Installation & Functional Accessories
Heavy-Duty Mounting Fasteners: Includes T-shaped sliding nuts, flange nuts, and headless inner corner screws for seamless rail-to-bed anchoring.
All-Weather Water Drain Tubes: Flexible, high-flow drainage hoses designed for rapid fluid evacuation from the canister.
Slat Protection Brackets & Shutter Screws: Premium protection buckles and matching structural screws to secure the interlocking aluminum slats.
External Hexagon Drilling Tail Screws: High-tensile self-drilling fasteners engineered for durable, shake-proof bracket installation.
Spare Single-Sided Adhesive Foam/Glue: Commercial-grade weatherproof insulation foam stripping to eliminate vibrations and reinforce the cabin seal.

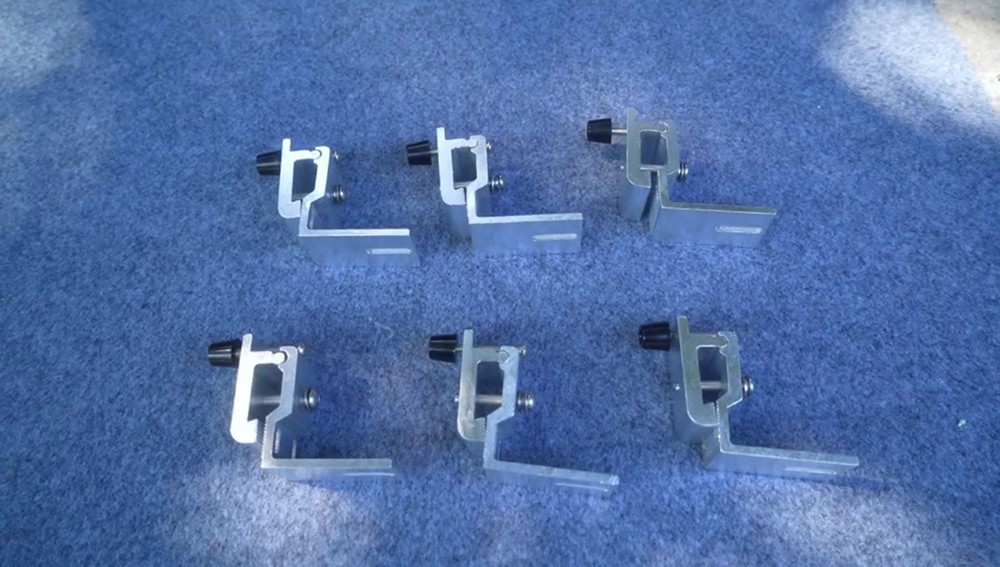

Heavy-Duty Installing Supports: Precision-stamped metal mounting brackets designed to clamp onto the inner truck bed utility rails.
System Cushion Blocks: High-density shock-absorbing rubber buffer blocks to minimize under-chassis rattling.
Drain Pipe Tension Collars: Stainless steel adjustable pipe clamps to tightly secure the drain hoses against heavy water pressure.
Part 4: Heavy-Duty Water Drainage System
Waterproofing is a major concern for wholesale buyers and fleet managers. Our system features a comprehensive drainage network:

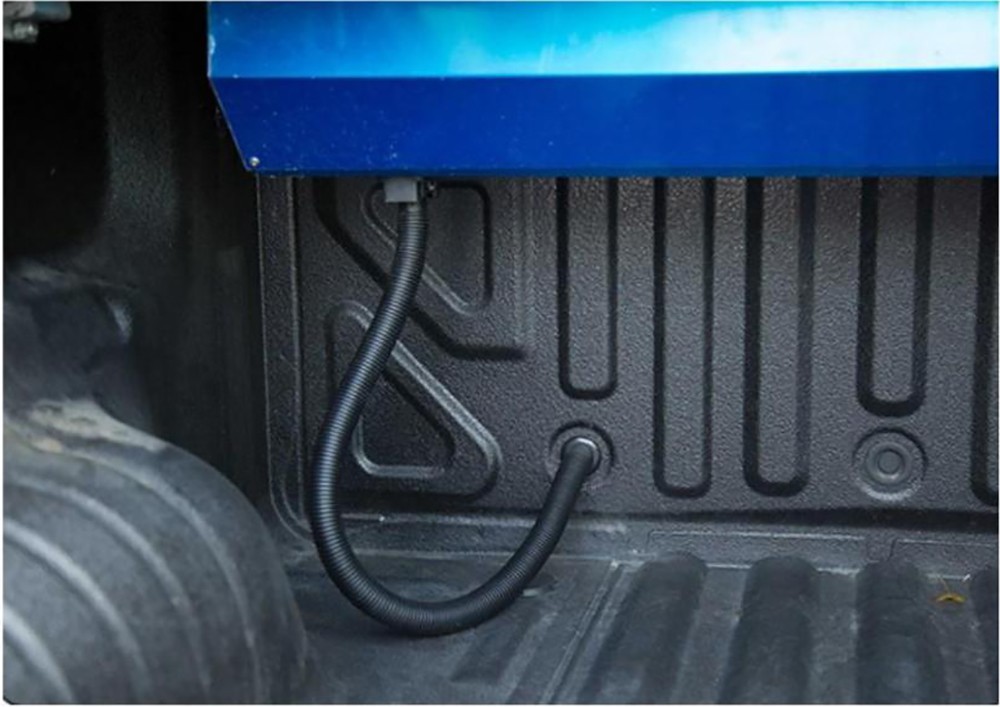

4-Tube Drainage Layout: Equipped with 4 integrated flexible water drain tubes (two connected to the front canister and two to the rear side rails).
Maximum Fluid Evacuation: Safely channels heavy rain, melting snow, and carwash spray directly out of the truck bed, keeping internal cargo 99% dry in all-weather conditions.
Part 5: Flush-Mount Key-Lock System, Warning Label & Heavy-Duty Pull Strap
To protect underlying cargo from opportunist theft and maintain seamless operational utility from the tailgate, our manual retractable rolling shutter features an integrated center-mount lock and guide strap kit:

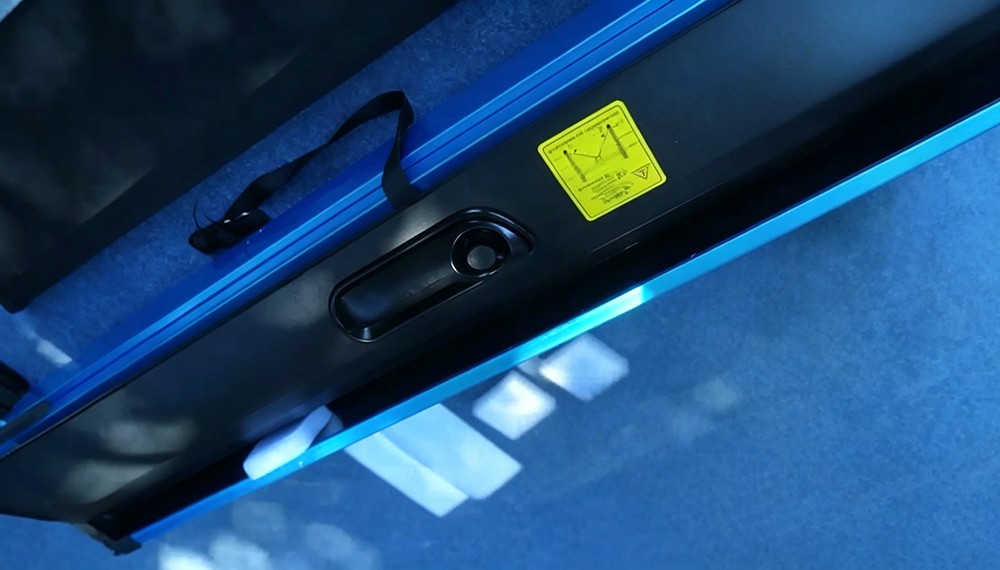

Flush-Mount Mechanical Lock Handle: Built with an ergonomic, flush-profile heavy-duty black lock handle that sits completely flush with the rear shutter frame. It features a premium key cylinder shielded by a dust-proof spring-loaded flip cap, keeping rainwater, mud, and ice out of the locking mechanics. When turned, the heavy-duty mechanical latch pins lock securely into the guide rails.
High-Visibility Safety Warning Label: Every rolling shutter comes equipped with a prominent bright yellow localized warning matrix near the lock handle. This provides critical operational safety protocols and load limits for end-users, underscoring our compliance with global automotive liability standards.
Heavy-Duty Nylon Pull Strap: Features an abrasion-resistant, high-density woven nylon pull strap attached near the center latch system. This allows operators to smoothly guide and pull the aluminum slats back to full closure from outside the truck bed without leaning into the vehicle.
Part 6: Precision Clamp-On Installation & Brackets
Installation efficiency determines workshop profitability and fleet scaling. Our hardware package is precision-measured for a 100% bolt-on layout:

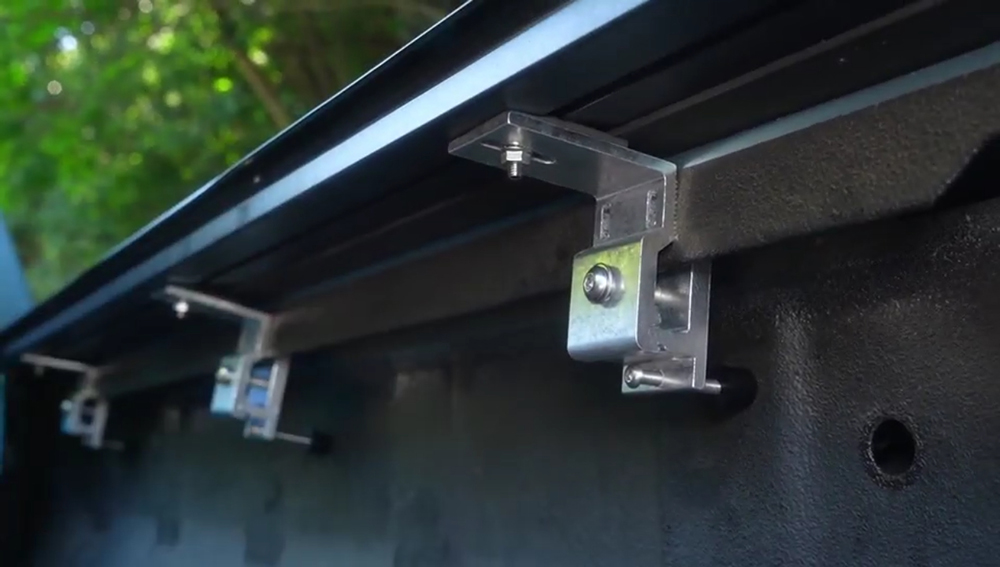

Heavy-Duty Installing Supports: Crafted from high-tensile stamped metal brackets engineered to anchor tightly onto the inner utility bed rails of mid-size to full-size trucks.
No-Drill Clamp Fastening: Utilizing heavy-duty T-shaped sliding nuts, flange nuts, and external hexagon drilling tail screws, the side tracks lock onto the chassis with zero structural sheet-metal damage. This ensuring a rapid 30-minute workshop installation while keeping the original factory vehicle warranty fully intact.
Anti-Vibration Buffer Kit: Includes commercial-grade spare single-sided black adhesive foam and high-density rubber cushion blocks to fully absorb under-chassis rattling and eliminate rattling noise on off-road terrains

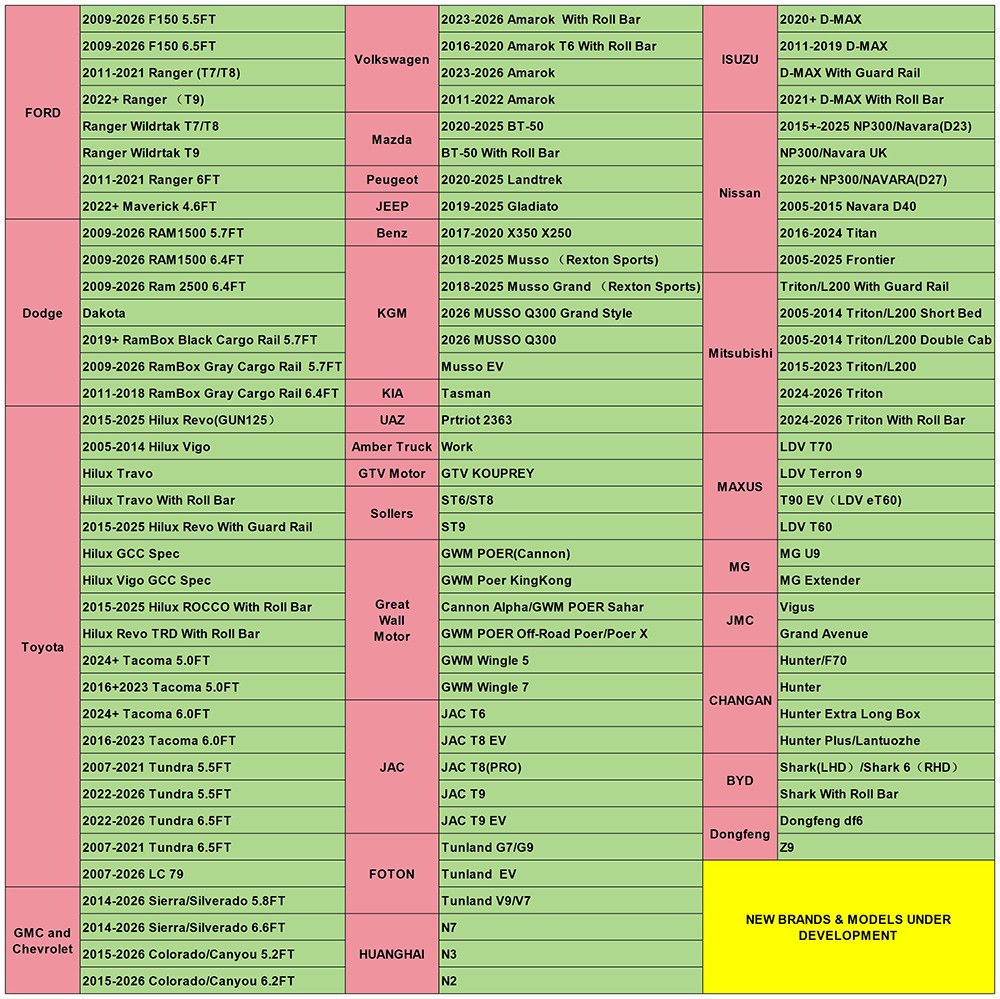

Part 7: Global Truck Bed Fitment Matrix
Partner with a Premium Direct Factory Supplier
Gaining a decisive competitive edge in the global automotive aftermarket requires a robust, agile, and transparent manufacturing partner. By sourcing directly from us, you eliminate middleman markups and secure enterprise-grade truck bed protection at highly competitive B2B wholesale pricing.
We fully support flexible low-MOQ trial shipments to facilitate your initial quality validation phase, backed by full engineering support for custom tooling and private-label branding.
Ready to upgrade your inventory or discuss custom fleet requirements?
Our application engineering and sales team are online to review your specifications.
