Power deployable running boards are a premium, highly convenient feature found on modern trucks and luxury SUVs. However, because they are constantly exposed to heavy road debris, undercarriage mud, winter salt, and high-pressure washes, they are among the most high-failure components on a vehicle.
When electric side steps stop working, most vehicle owners and repair shops assume they need to replace the entire expensive bracket and linkage assembly. As a specialized OEM-grade manufacturing factory, we are here to tell you that in over 85% of cases, the structure and brackets are perfectly fine—only the standalone electric motor unit has failed.
Here is our comprehensive factory guide to troubleshooting electric step failures and choosing the exact matching replacement motor to save time and replacement costs.
---
### Part 1: Top 3 Signs Your Power Running Board Motor Is Failing
Before ordering parts, look out for these typical mechanical and electrical warning signs that indicate your motor armature or internal gears are failing:
1. The Steps Are Sticking or Jammed Midway: If your boards deploy halfway and freeze, or require a manual push to fully extend or retract, the motor is likely stalling or losing its internal torque potential.
2. Loud Grinding or Clicking Noises: If you open your car door and hear a fast buzzing, clicking, or metal-on-plastic grinding noise from under the chassis but the boards don't move, the internal drive gears of the motor are stripped.
3. Completely Dead System (No Response): If there is zero mechanical sound when the doors cycle, and you have checked that the system fuse is intact, the electric motor's internal wiring circuit has shorted out or corroded due to water entry.
---
### Part 2: Why You Should Only Replace the Motor (Without Brackets)
Many auto dealerships will try to sell you a complete structural linkage kit that includes the mounting hinges and brackets. Buying the complete kit can cost anywhere from $500 to over $1,000 per side.
Replacing the standalone motor unit is a smart alternative because:
- Massive Cost Reduction: Buying the premium standalone motor assembly directly from a manufacturing factory cuts your material costs down drastically.
- Simpler Installation: You do not need to uninstall the heavy support brackets or struggle with rusted frame bolts under the truck chassis. You simply unbolt the compact motor unit from the existing linkage axle and swap it out.
---
### Part 3: Step-by-Step Selection Guide — Matching the Right Plug & Configuration
Because running board motors are highly integrated with the vehicle’s central electronic control module, selecting a replacement motor requires looking beyond just the vehicle model. You must verify the physical connector plug profile and wiring schematic.
As a master factory supplier, we produce these exact distinct plug variations to match precise global market replacement specifications. When ordering your standalone unit, verify these parameters:
1. Wiring & Pin Configuration:

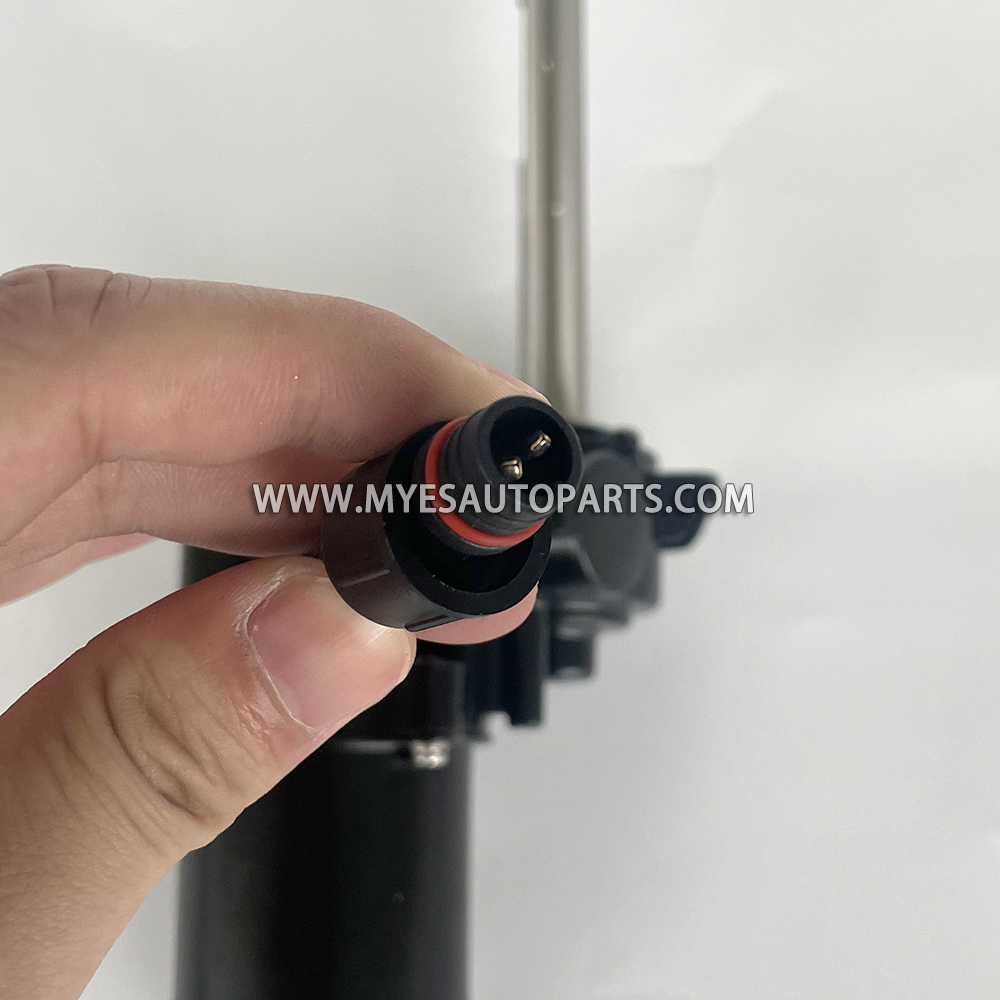

- 2-Pin Harness Layouts: Typically utilized on legacy systems or basic power step assemblies. These come in 2-pin round plug configurations (classic long-shaft designs) or 2-pin flat plug variants (often utilized on modern compact custom systems).
https://www.myesautoparts.com/2-pin-round-plug.htm
- 5-Wire / 5-Pin Smart Layouts: Engineered with integrated position feedback sensors that sync with anti-pinch loops and door control modules. These are divided into 5-pin square plugs, 5-pin flat plugs, or highly specialized 5-wire Land Rover plug connector arrangements.
https://www.myesautoparts.com/5-pin-land-rover-plug.htm

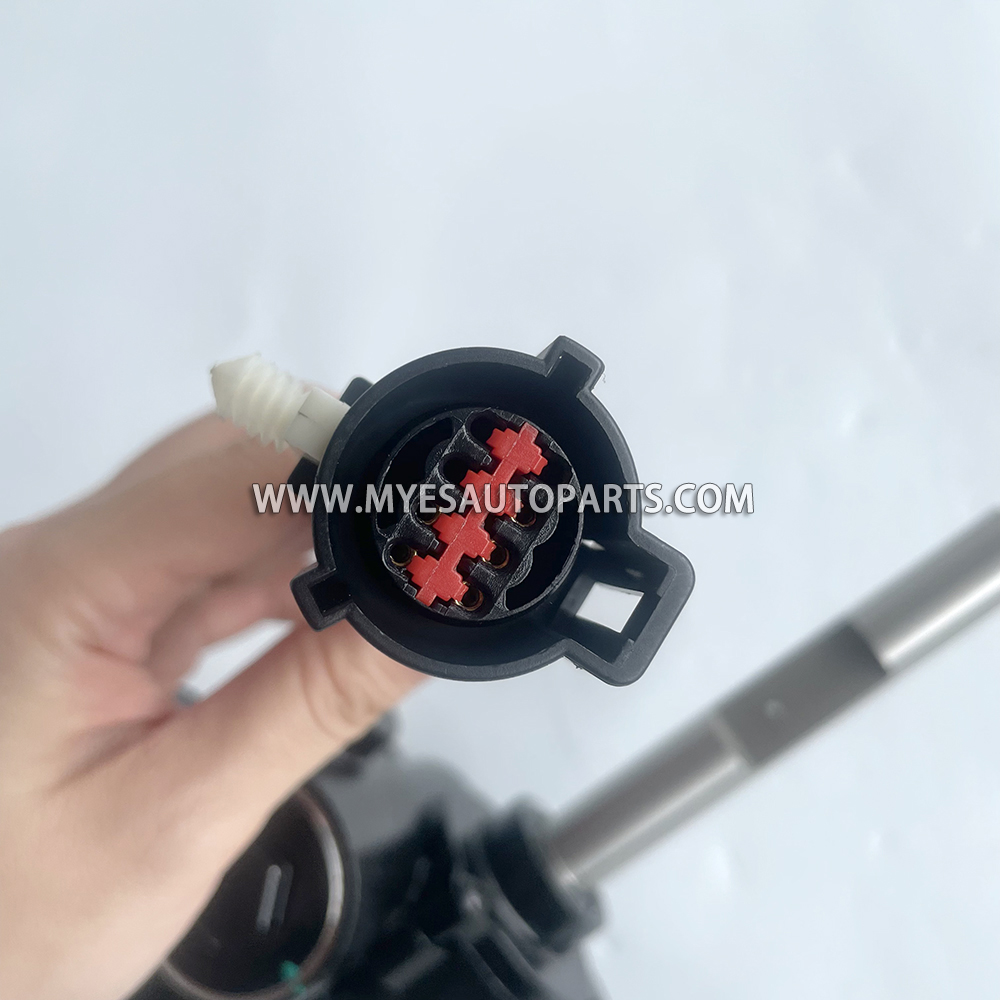

- Specialized Multi-Wire Casing: Advanced systems utilize layouts like a 5-wire configuration built inside a 6-pin square plug casing, or heavy-duty dual-plug architectures for large-frame extended vehicles.
2. Casing & Shaft Geometries:
- Output Shaft Profiles: Check whether your system linkage takes a round notched shaft or a heavy-torque square output drive shaft to prevent physical mating issues.
- Casing Material: Conventional heavy-duty aluminum head casing models provide maximum impact shielding from thrown road rocks compared to baseline composite polymers.
---
### Conclusion & Sourcing Factory Direct
When replacing a power running board motor, targeting the correct pin layout and orientation (Left Driver Side vs. Right Passenger Side) ensures a flawless plug-and-play installation with zero splicing or wiring modifications.
Are you an automotive parts distributor, an e-commerce shop owner, or a professional fleet repair facility? Sourcing your inventory directly from a dedicated manufacturer guarantees precision fitment, hardened internal metal gears, and certified weatherproof casings.
Explore our comprehensive catalog of 2-pin and 5-pin standalone running board motors, or contact our engineering team with your specific physical material samples to secure factory-direct wholesale pricing today.
