MYES power running board motor with 5 pin plug technical specification

MYES power running board motor with 5 pin plug technical specification:

1. Standard status:

Range of temperature and humidity: temperature: -20℃~ +65℃; Humidity: 45%~75%;

Range of use under severe conditions: temperature: -40℃~ +85℃; Humidity: 30%~85%;

Test conditions:

(1) All tests shall be carried out in the range of standard temperature and humidity (temperature: 20±2℃, humidity: 65±5%);

If there is no dispute between the two parties, the test can be carried out under normal temperature and humidity (temperature: 5-35 ℃, humidity: 45-75%).

(2) High and low temperature test shall be conducted according to -40℃, +85℃ and 75% humidity. Test methods and standards shall be in accordance with

GB/T2423.1-2008/IEC60068-2-1:2007 Environmental test standard for electrical and electronic products, Q /FSJS002-2018 automobile pedal

Board motor technical standard implementation.

2. Installation conditions:

The motor can be installed at any Angle, but the specific needs to be considered according to different models, chassis structure and bracket structure. Pay attention to the electric

The maximum distance between the machine and the ground is appropriate, considering the vehicle passability and avoid motor collision damage.

3. Motor characteristics:

4. Environmental characteristics:

Operating temperature and humidity range: temperature: -20℃~ +65℃; Humidity: 45%~75%.

Range of use under severe conditions: temperature: -40℃~ +85℃; Humidity: 30%~85%;

Storage temperature and humidity range: temperature: -10~40℃, humidity: 75%MAX.

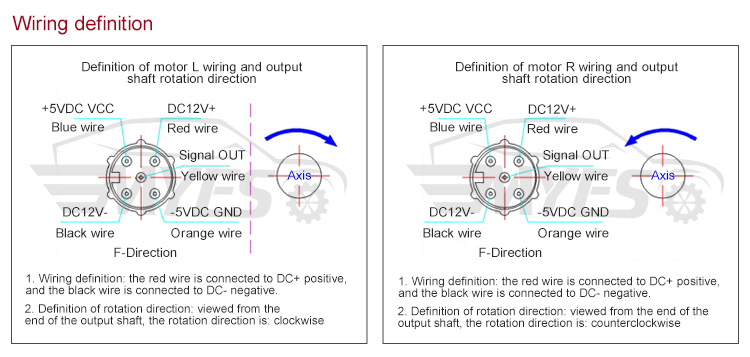

5. Plug wiring definition:

6. The motor specification:

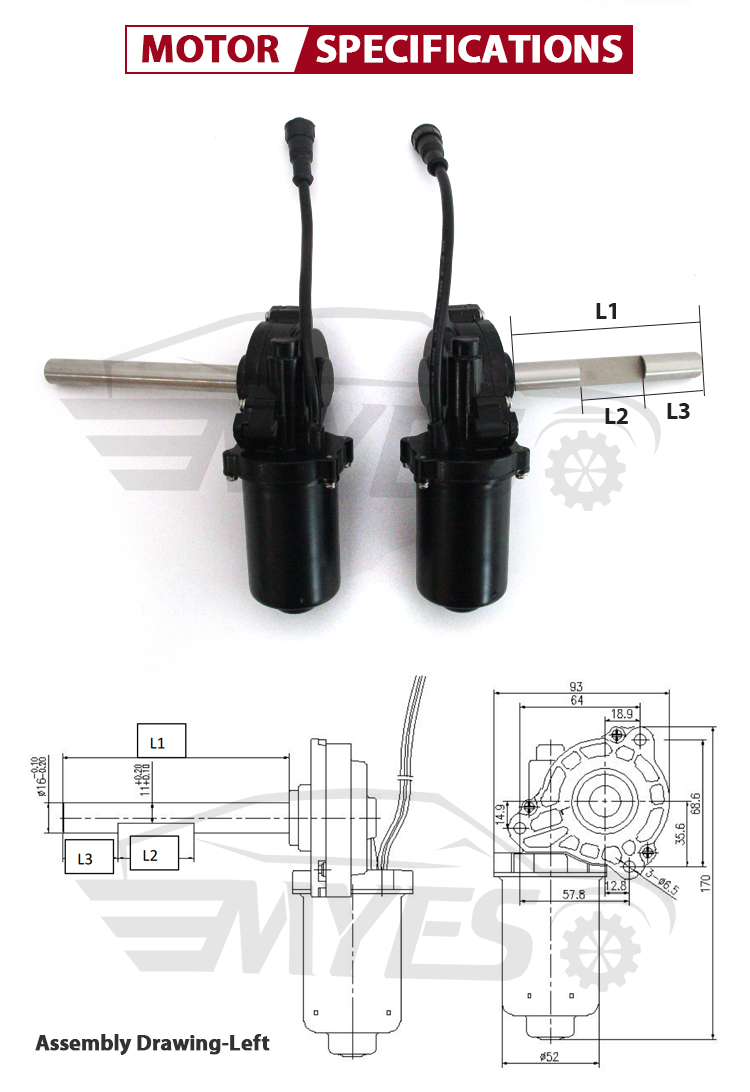

7.Motor specifications: Motor output shaft Specifications: Size unit mm
